Supply & Wholesale Cable Protector Ramps
JACKWIN offers cable ramps for developing, producing and wholesale. We are equipped with injection, and rubber extrusion machines to provide a full complete range of production for your cable ramps. Our cable protector ramps are ideal for indoor and outdoor applications including entertainment venues, sporting events, convention centers, festivals, amusement parks, public events, construction sites, temporary power, raceways and disaster relief.
What to Know About Cable Protector Ramps?
Cable ramps have various names. For example, the yellow jacket cable ramps are also known as drop-over cable protectors, cable trays, cable defenders, cable crosses, floor cable covers, cable bridges, and electrical cable protection tiles, among many others.
Our cable protector ramps can be used in various commercial and industrial settings, as well as some lighter-duty options for your home or office.
These rubber cable ramps transcend the ordinary, establishing a new cable protection standard.
Cable Protector & Hose Ramp By Features
We are your one-stop cable protector ramp supplier for your cable management system at affordable prices. If you are a retailer, wholesaler, trader, fire fighting department, bidder, large factory, sound media company, or sports event organizer, we are your best choice.
size 1000x130x20mm for 3EA 13mm dia. cord, optional yellow and black, ready for ship
Size 1000x245x45mm, channel size 89x35mm, 2.17kg, yellow color, PE material
Size 1000x130x20mm, 1.5 kgs, channel size 30x12mm, interlocked connection
Size 1000x220x30mm, 3 kg, channel size 85x25mm, made of rubber material
Size 1000x200x40mm, channel size 32x30mm, 1.4kg, 2 channels, made of PE material
size 1000x280x40mm, channel size 32x30mm, 2.5kg, 3 channels, yellow jacket, made of PE material
Lightweight, red tray and yellow cover, size 1000x245x45mm, channel size 32x32mm, 2.5kg, made of PE material
Rubber tray, and yellow plastic cover, size 1000x220x30mm, channel size 69x17mm, 5kg, design for 2 cords

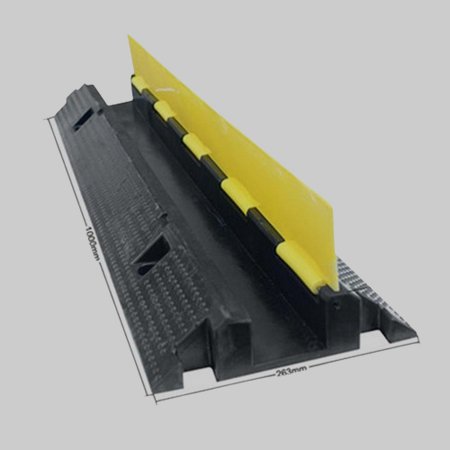

Rubber material for body, yellow cover, interlocked design for connection, size 1000x260x70mm, channel size 71x50mm
Solid rubber material and yellow cover, resist 40 tons weight capacity, size 1000x580x120mm, channel size 128x102mm, 22kg
Size 1000x250x50mm, channel size 32×32 mm, 7kg, reflective cat eyes, available for 22.5°, 45° and 90° corner turning
size 1000x450x70mm, channel size 55x51mm, 13kg, heavy duty weight capacity, medium type, T-bone connector
size 1000x300x50mm, channel size 35x29mm, 9kg, economical ramps, applicated for 1.25 inch cables and pipes
Heavy duty weight cable protector, size 900x500x75mm, 17kg, channel size 53x65mm, fits for 2 inches cables and hoses
Designed for 4 pieces of 1.6 inches cables, size 900x500x60mm, channel size 44x40mm, 15kg weight

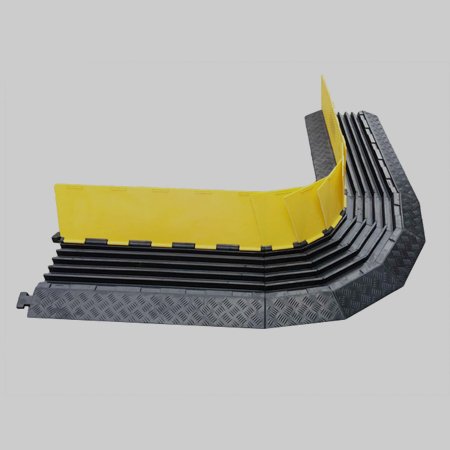

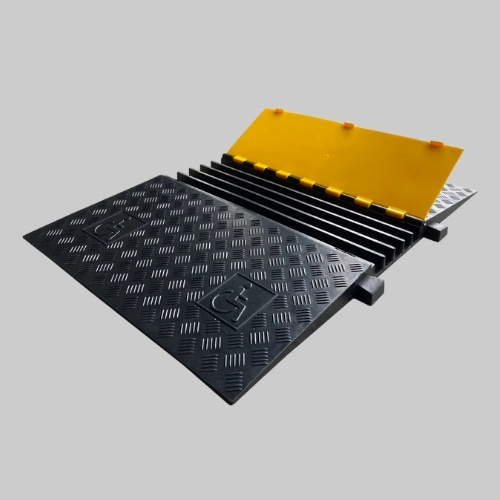

standard 5 channel ramp, size 900x500x50mm, channel size 30x30mm, 15 kg weight, yellow jacket cover
Made of recycled rubber material, size 855x300x85mm, channel size 90x75mm, weight 12 kg, with T-bone connector
Solid rubber, fire hose bridge with 2 channels, size 855x300x125mm, channel size 100x100mm, weight 19 kg
30 tons weight capacity, size 1010x300x135mm, channel size 150x150mm, 22kg, 6 yellow reflective tapes, designed for 6″ hoses
2 channels, size 860x300x90mm, channel size 100×70 mm, 14kg, 30 tons weight capacity, yellow reflective strips
size 900x300x110mm, channel size: 90x90mm, 16 kg, capacity 30 tons, designed for fire fighting department
detachable section for fire hoses, large cables management and protection, design and customize for big project and bidding

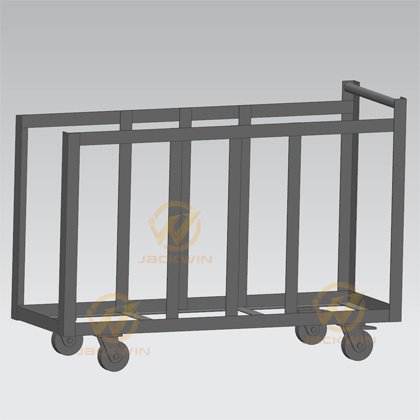

Designed and customized for JACKWIN cable ramp, swivel wheels with braker, max weight loading 1.5 tons
Flight case for JACKWIN cable protectors, accept customization for your required sizes or appointed loading quantity, weight capacity 500kg
designed ideal for traffic speed bump and cable protector, both 1 and 2 channel available, one meter length, 30cm width
made of flexible and solid PU material, heavy duty max. 30 tons, 5 channels assortment cables, interlocked T connector
Optional size 39″x5″x1-1/5″, 18kg, φ20mm/157″x6-3/5″x2″,14kg, φ40mm
Size 39″x4″x1″, 1.3kg, channel size 35x25mm, length also can be customized
Cable Protector and Hose Ramp Properties
JACKWIN’s cable protectors and hose ramps are made of recycled rubber and PU, discover a range of cable protector ramps with the highest quality and features in the following.
soft and solid construction, resist weather-condition
the yellow safety color strikes people’s eyes
effectively manage messy cables, making them neat and hidden
allows for multiple connection lengths
anti-skid effect for pedestrians or wheels
extra rugged 2,000 lb. max loading weight
easy for hassle-free cable placement
great for use with pedestrian traffic, hand trucks, and carts with wheels
easy to manage the running cables, pipes, or hoses
interlocking design, easy and quick to setup, cost-saving
rubber for body and plastic for cover, in good insulation
our rubber with fireproof material ingredients, good flame retardancy
Leading Expert in Cable & Hose Management Systems
Boost your business to discover a range of cable protector ramps with the highest quality. We provide a one-stop service from products to solutions for your cable management system projects.
Functions
- Manage the cables, pipes, cords or hoses to be damaged when individuals and vehicles pass over them.
- Reducing trip hazards and reducing the occurrence of accidents.
- Being used as a speed hump slows down vehicle speed when run over the rubber cable protector.
- Protect hose lines from damage in extreme weather conditions and work environments.
- provide safe and reliable cables, pipes, hoses, cords, and wire management.
- Shock absorption reduces the bumps when the vehicle hits.
- Prevent leakage to avoid the risk of leakage and electric shock.
Advantages
- Weight resistance, it can withstand approx 40 tons of heavy-duty vehicles to run over.
- Long service life, the ramp is made of hard-wearing SBR/NR blend rubber and resists all bad weather conditions.
- Easy to link, ramps can be joined together by connectors to create any length or any angle turnings required.
- Good Visibility, with built-in high visibility reflective yellow strips to warn against tripping hazards and to help slow down traffic.
- Hign durability, the hard rubber material makes the product durable, non-conductive and resists oils and solvents.
- High-pressure resistance, dual channels keep hoses straight and withstand over 2000 psi pressure.
- UV resistant, it is UV stabilized and the color will not fade away during indoor or outdoor usage.
- Resistant to low and high temperatures, highly durable to withstand severe weather & temperatures from -40ºF to +130ºF.
- Interlock design, interlocking T-connectors allow for multiple cable covers to be connected to cover a larger area.
Resource
For more details on cable protector ramps, please click to download our catalog below.
To learn more knowledge about JACKWIN, please follow our knowledge center.
Rubber Raw Material
JACKWIN’s cable protector ramp is mainly made of rubber. Rubber production requires the following main raw materials: raw rubber, compounding agents, waste tires, and fiber materials. Raw rubber is the basic material, compounding agents are mainly used to improve the performance of rubber products, and fibers are used to enhance mechanical strength and limit deformation, similar to the steel bars used to build a house, playing a supporting role. Raw rubber must be softened in a drying room, and compounding agents must be crushed and dried to ensure that they can be evenly mixed, and then rolled into sheets for later use.
Our Cable Protector Ramp Uses
Discover a complete range of applications for JACKWIN’s cable protector ramps, and experience a world free of disorganized cables, wires, and hoses, choose premium JACKWIN cable ramps.

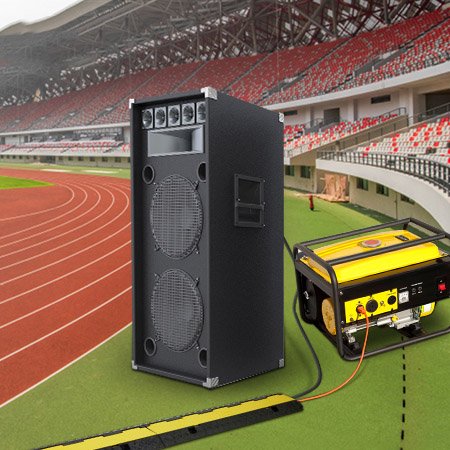

used for management of power supply cable and wire in gymnasiums, trade shows, festivals.
at stages, filming locations, protecting and managing electric cables.
cable protection for temporary power supply in parking lots.
cables are laid on the ground, cable protectors are installed, and forklifts and trucks can go over them.
ground laying of cables for various radio and television equipment needs to be managed and protected to make it flat and tidy.
engineering applications, various cable layouts and routings.
cables for various devices need to be routed and protected to prevent electric shock.
in case of fire, fire hoses will be protected by fire hose bridges, so that the wheels of fire trucks and other equipment can pass through these fire hoses safely.
cable laying for temporary events in shopping malls or residential areas.
safeguard the cables and the pedestrians and vehicles passing over them.
Our Production Capacity

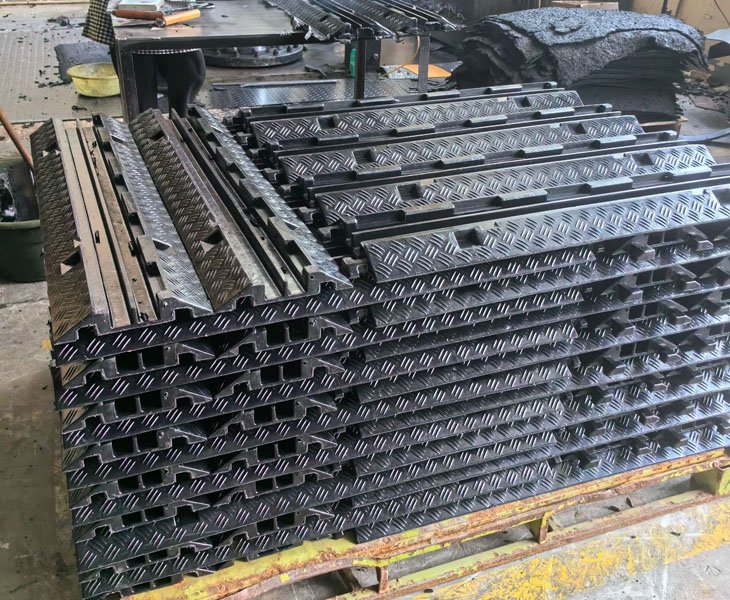

We have 2 workshops for rubber cable protector ramp production including 20 sets of rubber vulcanization machines.

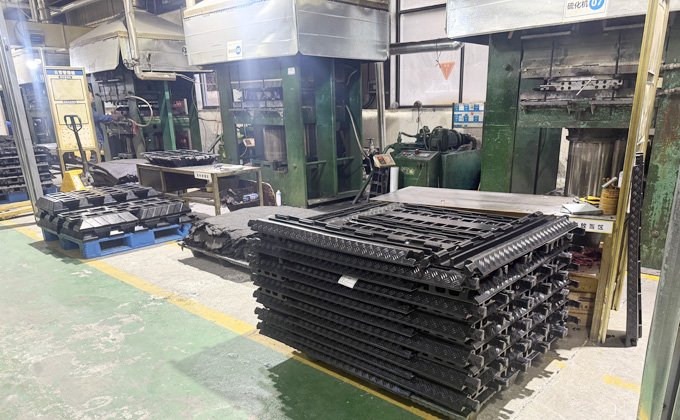

The equipment of this production line is all heavy-duty hydraulic rubber vulcanizing machines, which can produce rubber cable ramps up to 2 meters long and weigh up to 40 kg. If you need to customize an extra-long and extra-heavy cable protector ramp, our equipment can afford.
The equipment of this production line is mainly lightweight vulcanizing machines, which produce cable ramps under 10 kg. Its advantages are small size, easy operation, and high production efficiency. We only need one worker to complete the entire production, so our production cost is very low.
More About Our Cable Protectors
We offer varies sizes and types of cable protector ramps for different applications and usages. We are China’ most complete, professional and premium cable protector ramp supplier. Choose quality, choose the future.
- Data Sheet
- Warranty

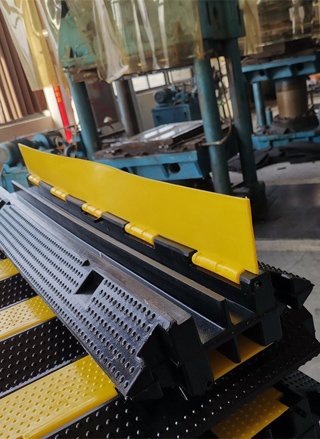

- Gallery
| Model NO. | Material | Size | Channel Size | Weight | Color | Capacity | Cord Dia. |
| JW-CP-00A | PVC | 1000*130*20mm | 40*13mm | 0.8kg | Y/B | 10 Ton | 0.5″ |
| JW-CP-00B | PVC | 1000*245*45mm | 89*35mm | 2.17kg | Y | 10 Ton | 1.37″ |
| JW-CP-001E | PVC | 1000*275*38mm | 30*30mm | 2.17kg | Y | 10 Ton | 1.18″ |
| JW-CP-002F | PVC | 1000*280*40mm | 32*30mm | 2.5kg | Y | 10 Ton | 1.18″ |
| JW-CP-001D | PVC | 1000*245*45mm | 32*32mm | 2.5kg | R/Y | 10 Ton | 1.25″ |
| JW-CP-00C | PVC/rubber | 1000*220*30mm | 69*17mm | 5kg | Y/B | 10 Ton | 0.66″ |
| JW-CP-00D | PVC/rubber | 1000*260*70mm | 71*49mm | 8.5kgs | Y/B | 10 Ton | 1.9″ |
| JW-CP-00E | PVC/rubber | 1000*580*120mm | 128*102mm | 22kg | Y/B | 20 Ton | 4″ |
| JW-CP-001A | PVC/rubber | 1000*250*50mm | 30*35mm | 5kg | Y/B | 15 Ton | 1.18″ |
| JW-CP-001B | PVC/rubber | 1000*450*70mm | 55*51mm | 13kg | Y/B | 20 Ton | 2.5″ |
| JW-CP-002A | PVC/rubber | 1000*300*50mm | 35*35mm | 9kg | Y/B | 15 Ton | 1.37″ |
| JW-CP-002B | PVC/rubber | 900*500*75mm | 53*65mm | 17kg | Y/B | 20 Ton | 2″ |
| JW-CP-003 | PVC/rubber | 900*500*60mm | 44*40mm | 15kg | Y/B | 20 Ton | 1.57″ |
| JW-CP-004 | PVC/rubber | 900*500*50mm | 30*30mm | 13kg | Y/B | 20 Ton | 1.18″ |
| JW-CP-012A | Rubber | 855*300*85mm | 90*75mm | 12kg | B | 20 Ton | 3″ |
| JW-CP-012B | Rubber | 855*300*125mm | 100*100mm | 19kg | B | 30 Ton | 4″ |
| JSD-012C | Rubber | 1010*300*135mm | 150*120mm | 22kg | B | 30 Ton | 4.7″ |
| JW-CP-013A | Rubber | 860x300x90 mm | 100×70 mm | 14 kgs | B | 20 Ton | 2.75″ |
| JW-CP-013B | Rubber | 900x300x110 mm | 90×90 mm | 16 kgs | B | 30 Ton | 3.5″ |
| JW-CP-016 | Rubber | 2000*300*110mm | 90*90mm | 70kgs | B | 40 Ton | 3.5″ |
All JACKWIN cable protector ramps have a 1-year warranty. Please contact us within one year after receiving the goods if you encounter any quality problems. We will solve the problem for you as soon as possible.
Customers' Feedbacks
-
fast shipment, just one days after our order
TimmyPurchasing Manager
We are a leading yellow jacket cable protectors manufacturer in China, all of our cable ramps have in stock and ready for shipment.
Woven bags or pallets, if you need retails package, we can customize your box with printing label.
We have lightweight and heavy duty ramps, our heavy duty ramps can load at least 40 tons capacity.
Related Product
How to Choose JACKWIN Cable Protector Ramp?
There are 3 reference factors for choosing a cable protector ramp. The first one is your usage scenario, whether it is indoor or outdoor. The second one is the outer diameter of the cable or pipe, and the last is whether the construction site is for vehicles or pedestrians, and the approximate load, which determines how much load-bearing cable ramp we choose. Based on these three factors, browse all JACKWIN cable protector ramps, and you will easily find a cable ramp that suits you.
How to Install JACKWIN Rubber Cable Protector Ramps?
It’s very easy to install JACKWIN rubber cable protector ramps, so please follow the instructions to finish your installation.
- Step 1: Check and measure your site.
- Step 2: Follow the route of your site.
- Step 3: Keep ramps in straight lines, remember to connect the right or left end turning.
- Step 4: Adjust the ramps and clear your site.
