Do you want to manufacture plastic parts for your business, product, or do you want to start a new startup? Then you will probably be confused about what you should choose, either injection molding or blow molding.
Actually, these two methods are used by engineers to shape plastic, but each works differently. Therefore, in this article, we will tell you how injection molding & blow molding are different in their processes, uses, and benefits.
What is Injection Molding?
Injection molding, on the other hand, is used to make solid plastic items. In this technique, raw materials are melted into a thick liquid. Now you need to push this liquid into the mold, which has different fixed shapes.
You will see this liquid convert into a hard plastic product when it cools down after the injection process. Hence it cools, the mold opens up and your finished shape item will pop out from the machine.

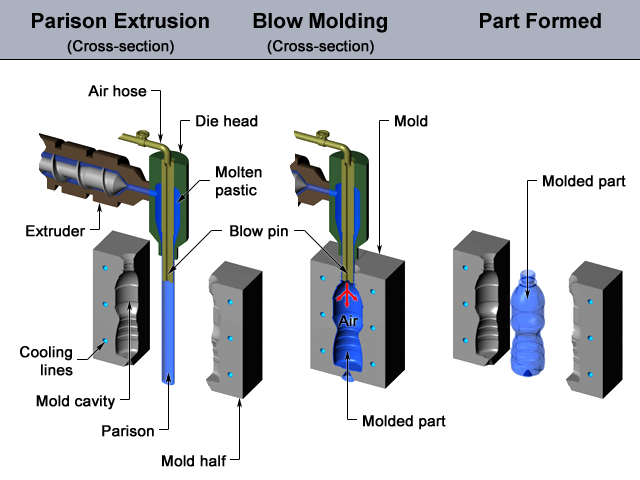

What is Blow Molding?
Blow molding is a process to manufacture plastic products. Plastic production companies use special blow molding machines for this purpose. You can make different desired shapes by this technique.
In a mold machine, you need to put hot plastic materials. Then you should blow air inside the tube to get the specific shape of your items. In this way, the tube will expand, plastic will stick with mold & after sometime get cold. Finally, you will have a strong and hollow piece.
Main Differences of Injection Molding vs Blow Molding
Well, you can use both injection and blow molding techniques to mold plastic parts. But, each method has unique functionality and purposes. Following are the differences between injection molding and blow molding.
| Features | Injection Molding | Blow Molding |
| Product Thickness | Produced thicker parts which are solid & strong | Items thinner than injection molding (lightweight/hollow) |
| Mechanism | Plastic is pushed into a mold with high heat and pressure | Plastic is blown into a mold, which requires less heat |
| Material Requirements | Many plastics can be used, such as hard or ABS | Best with soft plastics such as HDPE and LDPE |
| Surface Quality | Smooth & clean finish items | May have small lines & a rough surface |
| Mold Cost & Precision | It is more costly due to the detailed design | Economical option with a simple working method |
| Finished Product | Generally make solid items (toys, cases, tools, etc) | Build hollow products like bottles and tanks |
| Durability of Mold | It can last long due to its strong structure | Mold is reusable, but it may get damaged sooner |
| Production Speed | The rate is slower because of the complex steps in the process | Quicker method, you can generate many items at once |
Product Thickness
Injection molding products have a thickness level from 1 to 6 mm. As a result, your finished products will be tough and have strength. Which means, if you need solids and strong items, injection molding is a good method for this purpose.
Blow molding is used by engineers to build hollow and thin products. It has a thickness range around 0.25 – 3.175 mm. So you should use blow molding if you want parts that can hold light things only.
Process Mechanism
Injection molding is generally done at a high temperature. Plus, you need to use strong pressure to push the plastic materials into the mold machine. This process is best to produce parts like containers, toys and machine parts.
In contrast, you have to heat up the plastic until it gets soft while doing blow molding. Moreover, air is blown with low pressure to shape it inside a mold. It works well for your hollow products.
Material Requirements
If we talk about the material required by injection molding, you have a wide option for it. Because, this method can work well with different types of plastics. For example: you can use polycarbonate, ABS and thermoplastic.
But, Blow molding requires soft and lightweight plastics. These materials include HDPE, PVC, LDPE and PP (polypropylene).
Surface Quality
The products manufactured through injection molding usually have smooth and shiny surfaces. It is due to a strong press on mold which fills every tiny space.
Although blow molding constructed items may not smooth as compared to injection molding. Because, when plastic is blown inside the mold, it may leave light lines. But you can still achieve better & polished items if you do the process properly.
Mold Cost & Precision
When we compare the injection molding & blow molding price range, there are major differences. Injection molding costs more because it has a more complex and detailed process.
You have to invest around $10,000 to $1,000,000 for injection molding. However, blow molding generally costs between $1,000 to $100,000. It is a more economical option and you can build medium to large items.
Finished Product
Blow molding produces hollow items such as bottles and containers. These are light and good for holding liquids and air. Injection molding creates solid items with fine details, like toys, phone cases, and car parts.
We can say that these products are strong and often look smoother & more finished. So, we suggest you choose a process which well fits your needs for production projects.
Durability of Mold
Injection molding molds are made from stronger materials. It means it can handle heat and pressure really well. They also stay in shape longer and deliver you stable results.
Furthermore, blow molding can be recycled and you can use it again and again. But, they might not last as long as the injection mold.
Production Speed
If you produce your plastic product with the help of injection molding, it will take more time. The reason is that this process is done by high heat and more pressure to shape the plastic.
In contrast, blow molding is best for you due to its quick and large production capability. Plus, it can shape many pieces quickly. Hence, when you have faster productivity, you will see your business grow.
Similarities Between Blow Molding and Injection Molding
Plastic Shaping Process: Both techniques injection molding and blow molding are used to shape plastic products. The process is common like starting with melted plastic and then put into mold.
Use of Molds: You need a mold to produce different styles and shapes in both methods. It is impossible to form a shape without mold. Once products are manufactured, you can use this mold again.
High-Volume Production: Well, injection molding and blow molding, each of them used to make large numbers of products. They are a cost effective option for manufacturing industries. Because, these methods can produce thousands of plastic parts easily.
Industrial Application: Many industries & business owners use injection molding and blow molding. For example: automotive, packaging and consumer goods etc. However, these companies prefer that technique which can fulfill their customized needs.
Advantages & Drawbacks of Injection Molding
Injection molding offers multiple benefits to engineers and product designers as well as people who use products made with this method. Following are 5 positive aspects of injection molding.
- Consistency: Once you set the mold, the process ensures that each part is made exactly the same. As a result you will get uniformity in the size, shape and quality of each product. This thing works well if your industry is related to automotive & medical products.
- Different Plastic Types Options: If your project aim is to produce a diverse range of products, then you need more choices in materials. Hence injection molding allows you to use a variety of plastic materials for successful operation of molding.
- Solid Products: The products manufactured with the help of injection molding are generally solid and strong. It is an ideal option for you if you want items that can resist any type of damage.
- High Detail & Accuracy: With injection molding, you can achieve products with sharp details. Because this process uses accurate mold that can match the exact design you want.
- Low Unit Cost: If we talk about price range, it is low for each item. Plus, it is a more affordable way when you need to produce in bulk. Hence, large scale production will be easy for you with injection molding.
Disadvantages: However, injection molding also has some disadvantages. For example: it required high initial investment for mold creation. You have to provide extreme temperature and pressure which is a time consuming process. Also the method is not suitable if you want to design complex shapes and small scale production.
Pros and Cons of Blow Molding
List of Pros
Blow molding has multiple features that make it great for you to make items. Below you will read the top advantages of blow molding.
- Faster Production Time: With blow molding, you will get fast productions. It is because its process is simple and efficient. This will also save your time as it makes maximum products in less time.
- Lightweight Output: The overall weight of items is generally reduced. You can carry them easily and shift where you need. Plus, you will still get strong parts as well.
- Lower Mold Cost: Mold used in blow molding is simpler compared to other molding processes. Hence, it costs you less and is ideal for your large production of goods.
- Less Material Waste: When you use blow molding, almost all the plastic goes directly into manufacturing of the product. So, there is nothing left over. Which means you don’t throw away much and make your environment eco friendly.
- Design Flexibility: Well, you can customize your items as you want with blow molding. For example: you can create many shapes & styles like curved bottles, handles and unique patterns too.
- Material Choices: As an engineer or owner you have a wide range of material for your plastic made business. You can use different types of plastic such as HDPE, LDPE, PP and many more.
Cons
Blow molding has a number of good sides but still there are few limitations. It has a low precision rate which leads to small differences in product quality. With this method, you can’t control wall thickness accurately. So, we can say that your final product will be weak and not durable. Moreover, the tools needed in blow molding techniques are more expensive than other molding processes.
Applications of Injection Molding and Blow Molding
Injection Molding: Automotive, medical, agriculture, packaging, construction, food industry, toys and electronics etc.
Blow Molding: Personal care and cosmetics, household, large storage tanks, aerospace, defense, furniture & pharmaceuticals etc.
JACKWIN Manufactures Safety Products By Injection Molding
Features: Portable, soft, easy stacking, storage and transportation, durable, weather resistant, UV resistant, official certification of ISO9001 & ISO14001, manufactured in different colors such as blue, pink, orange, purple, yellow and several others.
Uses: For road safety, games (like basketball or obstacle sports), management of various events, school areas, road construction and new pedestrian pathways, traffic management and big construction zones to help workers etc.
Features: These lights are energy saving, 360 viewing angle, quick flash, multi function, rubber sealed, double sided lens, made of 100 % plastic, visible from 500 meter and made by ultra LED and polycarbonate(PC).
Uses: Best for airport runway safety, sidewalk construction, warn the pilots, chemical plants protection, outdoor uses like fire scene, on towers, road work sites and install at high building construction.
Features: Unique design, solar panels facility, ultra brightness & visibility, available in a wide range of colors (red, yellow, blue), attached rechargeable battery, manufactured with PC materials and tested under IP67.
Applications: Used as to guid drivers, road work management, marine and aviation protection, during emergency situations, alert workers about danger at mining and industrial sites.
Features: High-brightness LED bulbs, durability (5+ years), IP68 waterproof, X-ray resistant, smart/lightweight for portability, multiple types of range, visibility over 800 meters, and customized design and colors.
Uses: Ideal for cars, trucks, utility vehicles, chemical tanks, forklifts, construction zones, tower cranes, airports, buildings, ships / boats for navigation, traffic control to guide vehicles and pedestrians during emergencies and maintenance.
Features: Manufactured from recycled material, PC reflective lens, can handle high temperatures, lightweight, uses high-density polyethylene (HDPE), best for portable applications.
Application: For school area safety, warehouse operation, reduced vehicle speed in parking lots, pedestrian sites, protection at police check posts, and highway toll stations.
Our Safety Products Are Also Made From Blow Molding
Features: Made of durable fluorescent orange HDPE, high-intensity, engineer-grade reflective collars, good visibility, available in various sizes (up to 1250mm height), stable rubber bases (6kg–16kg), easy-carry handles, weather-resistant in outdoor conditions.
Uses: Perfect to control traffic during road construction, maintenance work & emergency lane closures. Helps mark merge points, restricted zones, crowd control, and is placed in hazardous work sites to reduce accidents.
Features: Strong and long-lasting (3–5 year lifespan), no breakage, rust-proof & UV-stabilized, so they are best for outdoors, light weight, easy to move when needed, quick to set up and perfect for crowd management.
Uses: For exit points in events, around stages to protect performers, busy areas to guide people, outdoor events, public places such as banks, stations, VIP zones to help people stay organized.
Features: Tall enough to block entry, designed with interlocking panels, made with strong materials like PVC or vinyl, rust-free and long-lasting in all conditions.
Uses: For construction sites, hazard zones to restrict access. Perfect for traffic control, outdoor events and exhibitions, used in sports fields to mark boundaries. Also great for gardens, pools and pet areas to set up temporary fences & privacy barriers.
Features: Our water-filled barriers are made from 100% new HDPE, lightweight when empty, bright red or yellow colors with reflective film for high visibility, handle substantial vehicle impact, resist weather conditions from -60℃ to 60℃, and an interlock system allows you to connect multiple barriers to fit your needed length.
Uses: For road construction, temporary work zones, and highway safety. It is also used at parking areas, vehicle checkpoints, airports, and events like concerts. It is also ideal for stadiums and motorsport tracks for clear separation.
Uses: Placed at highways, parking lots & construction zones to guide traffic, mark safe driving paths, at events to manage crowds to avoid accidents, helps drivers see hazards during road maintenance & in busy areas.
Features: Manufactured with HDPE that has the ability to bounce back, also easy to carry, install, plus remove, lightweight, rust-free, waterproof, durable, resistant to weather (from rain to sun), has bright colors and reflective stripes as well. But our delineator posts are manufactured from TPU material, which is produced by injection moulding.
Wrapping It Up
In the end, we can say that each method, blow molding and injection molding, has its own unique properties and process. So, injection molding or blow molding? It all depends on what you need and your project requirements.
We will advise you, be careful when you decide between them and always go for which perfectly suits your business. Because, it directly affects your product’s quality, shape, cost and overall success of your industry setup.
