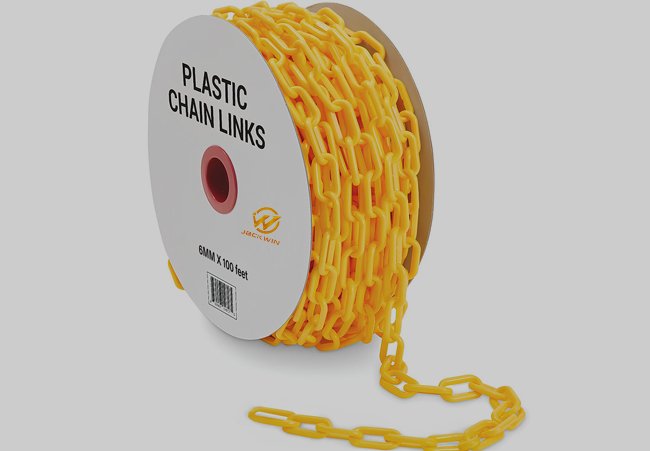

Plastic Chain Link
Model: JW-SSM-005
JACKWIN offers premium quality plastic chains that meet international ISO9001 & ISO14001 certification standards. Our plastic chains are widely used for connection links for pedestrian barriers, traffic cones, delineator posts, outlining restricted areas, and T-Top bollards for traffic control and safety demarcation.
- Made of reusable and lightweight high-density polyethylene(HDPE) material.

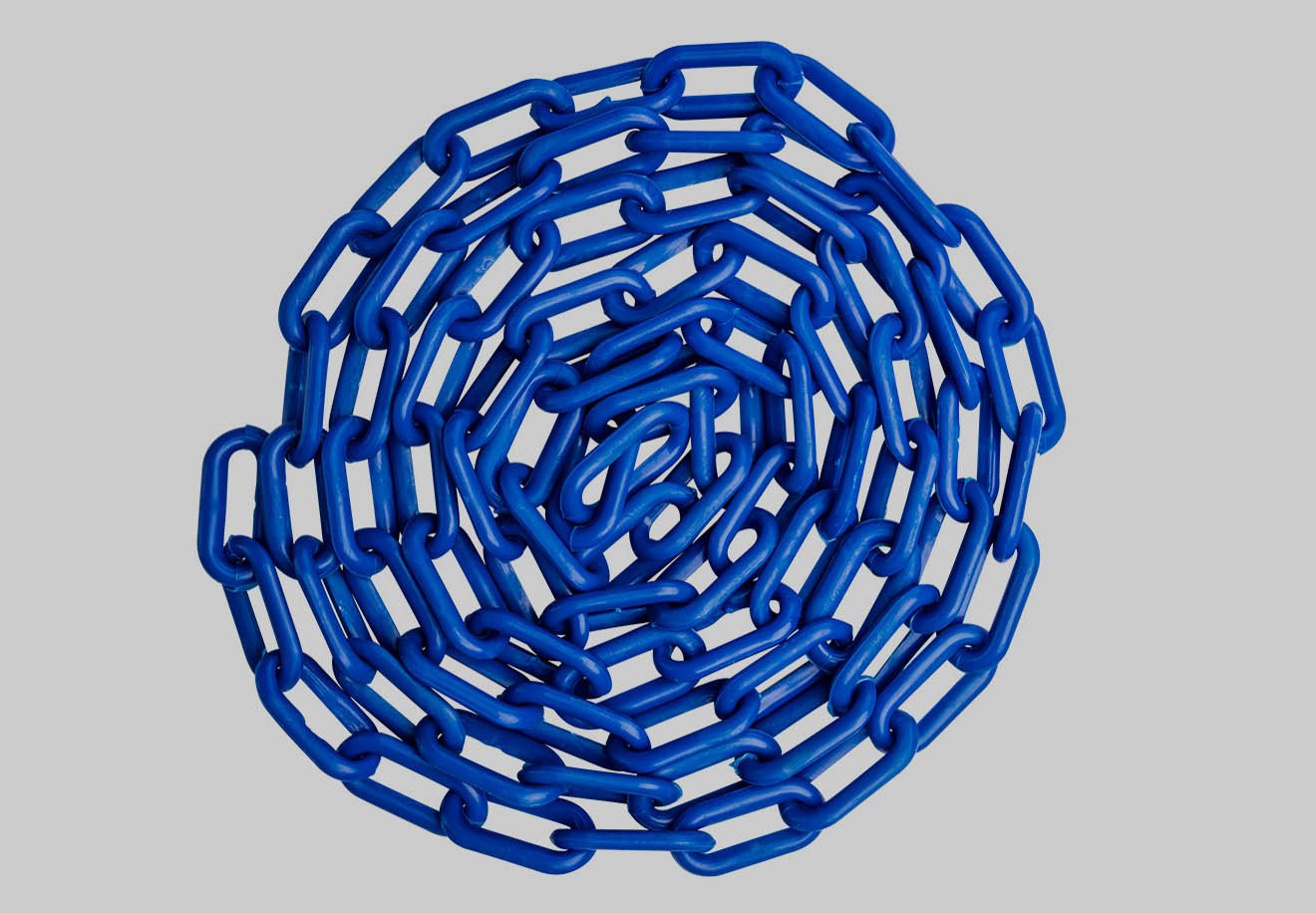

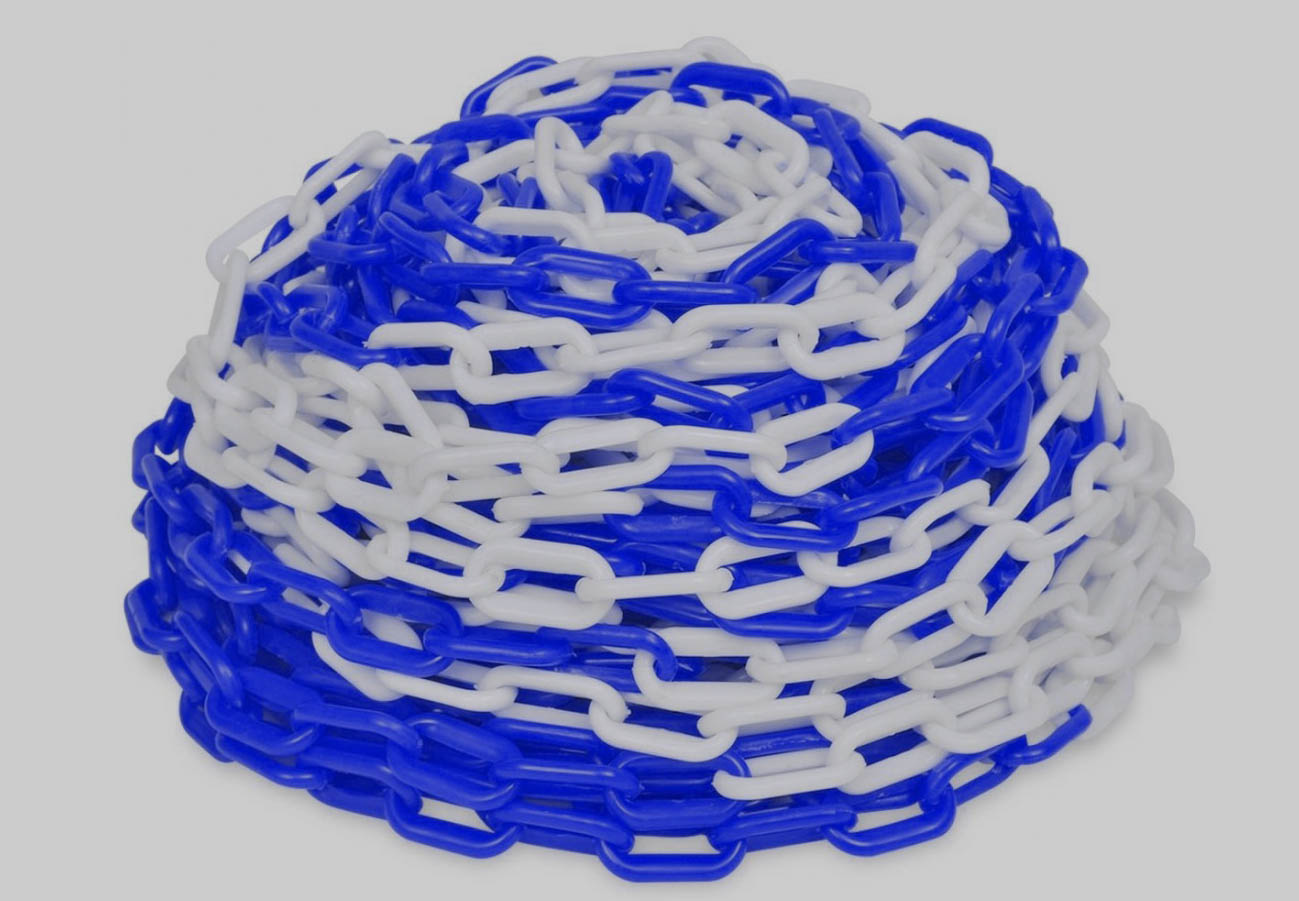

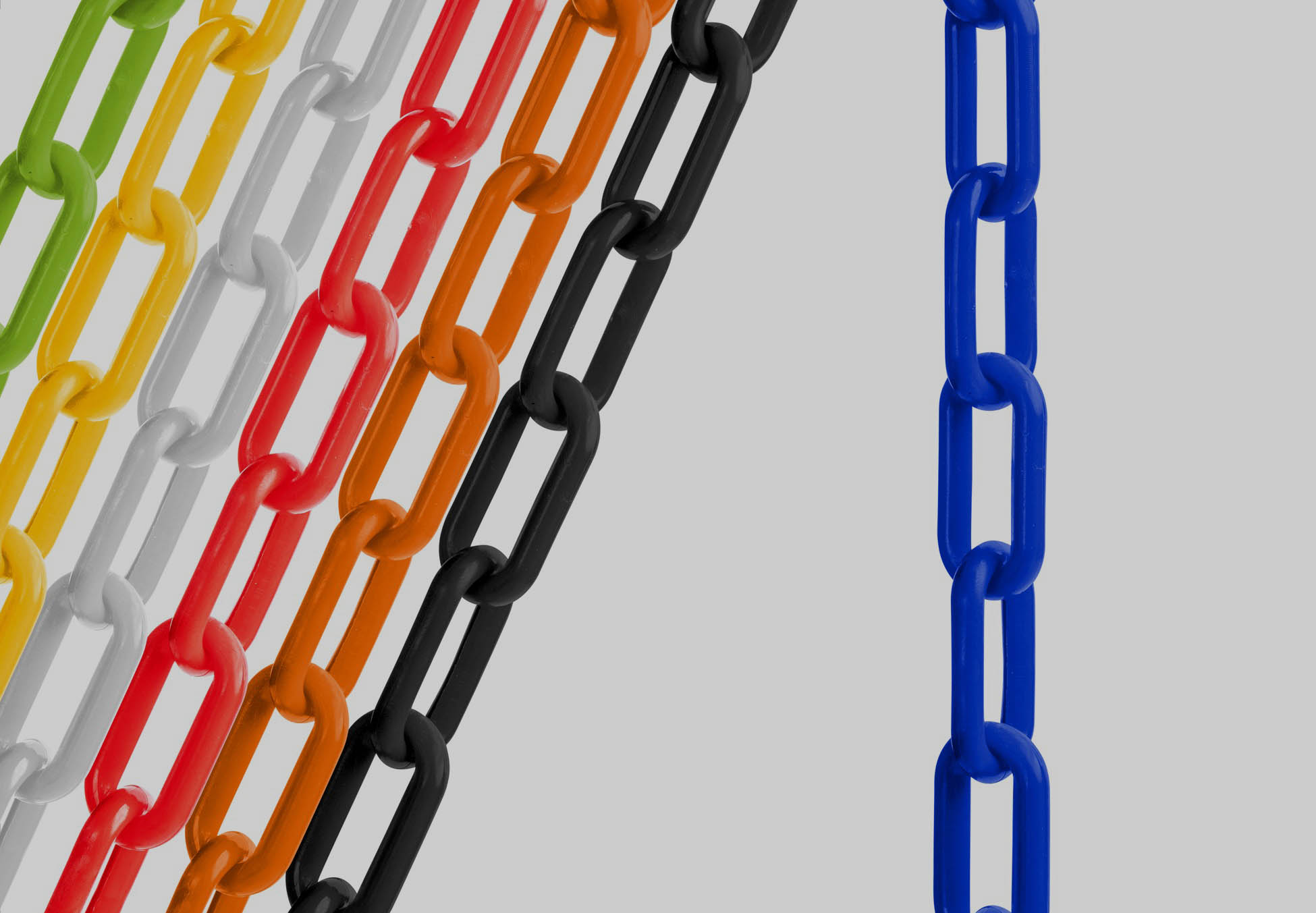

- Multi-colors, black, yellow, red, pink, purple, orange, green, blue and white(over 3 years no fading color).
- Multi-sizes(diameter), 2mm, 3mm, 4mm, 6mm, 8mm, 10mm and 12mm.

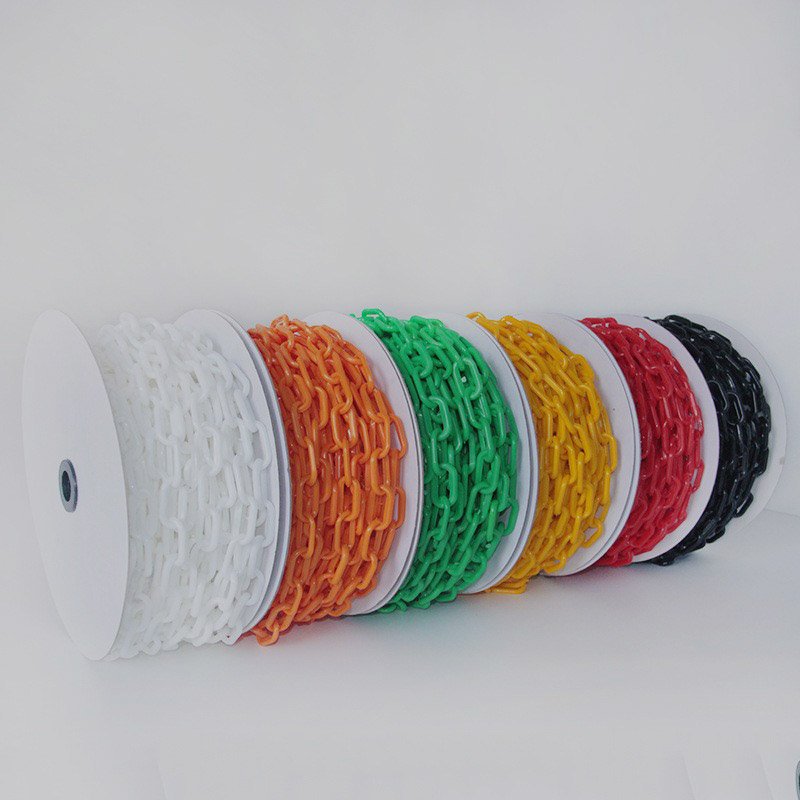

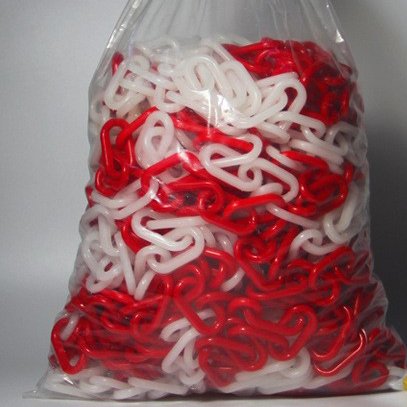

- Package, 25 meters per roll or polybag.
- Datasheet
- Images

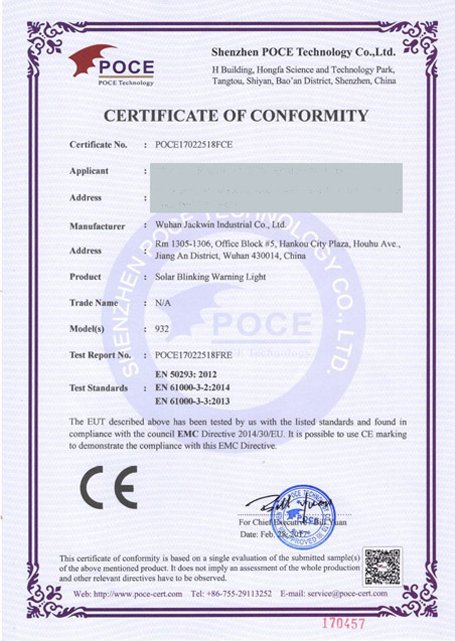

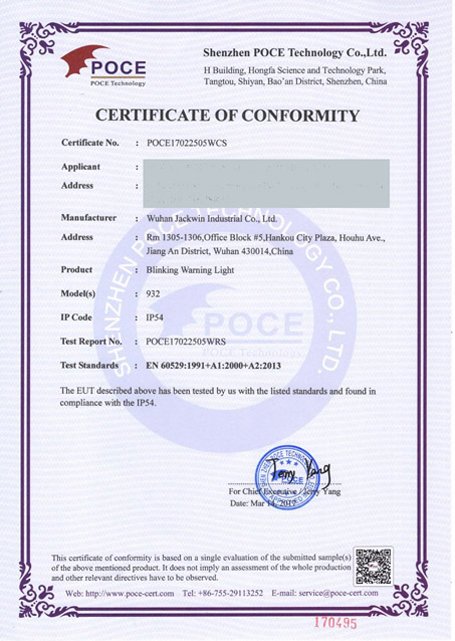

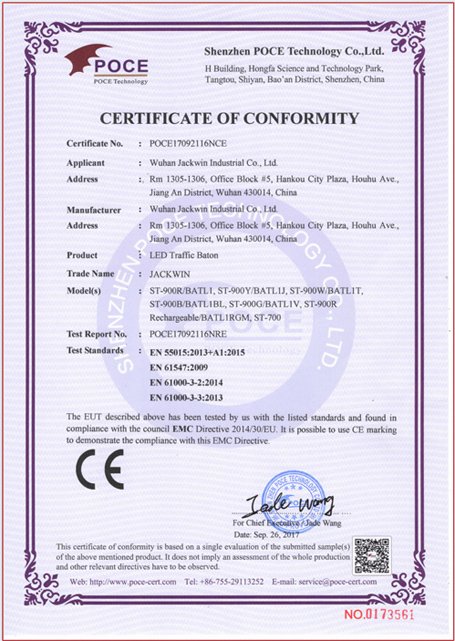

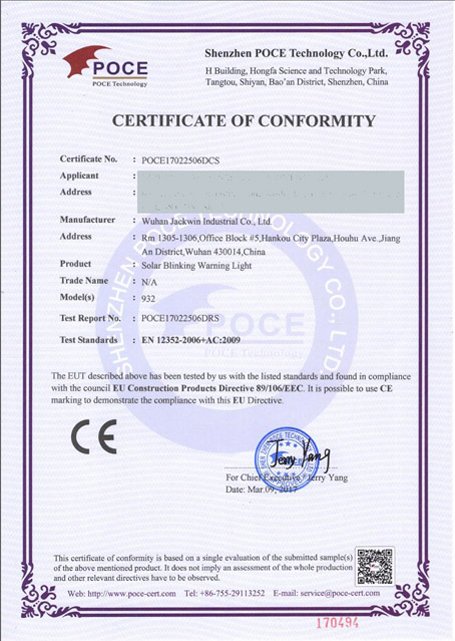

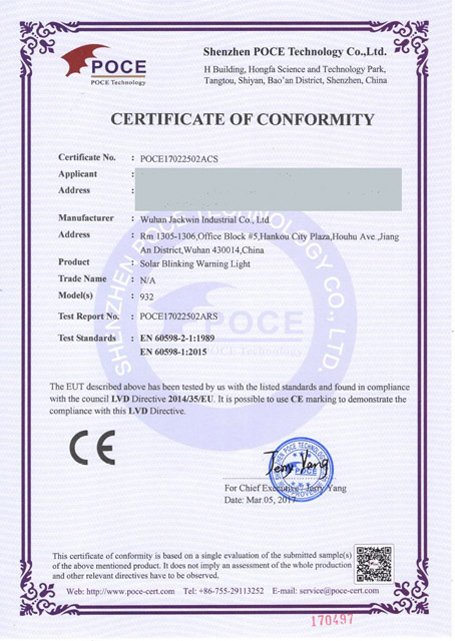

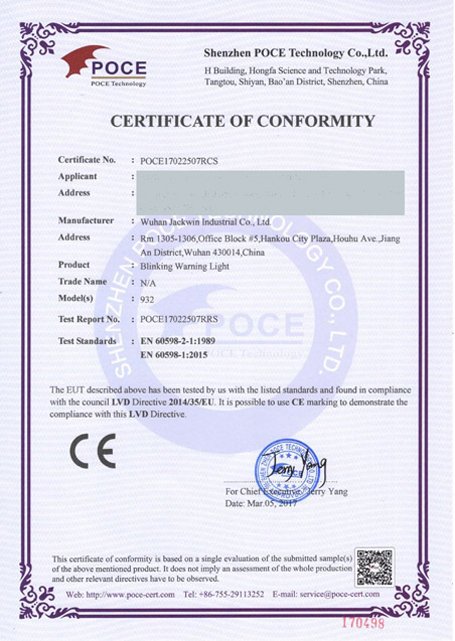

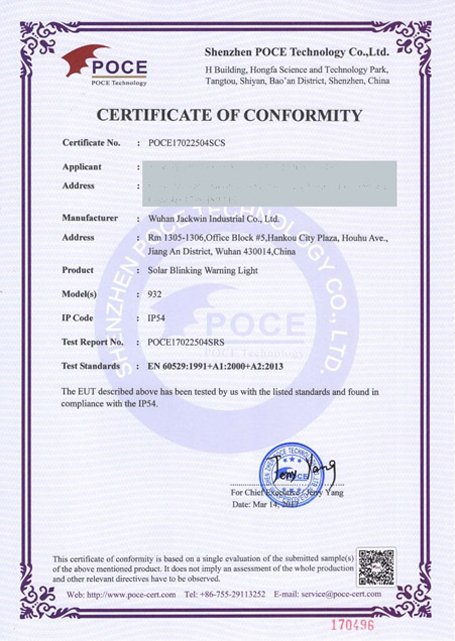

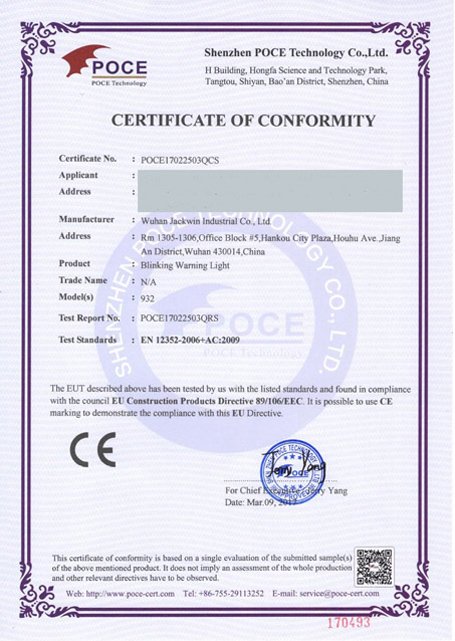

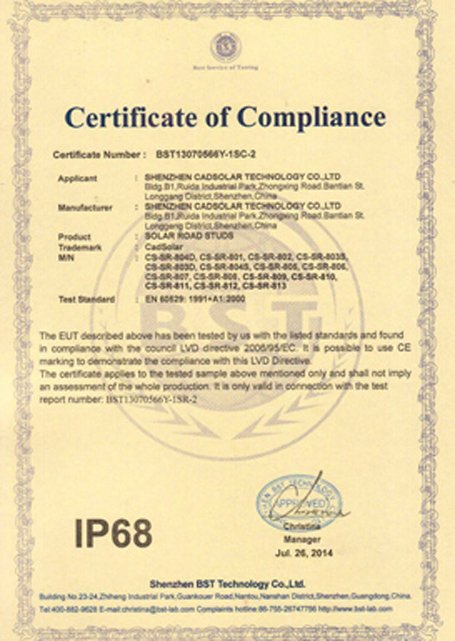

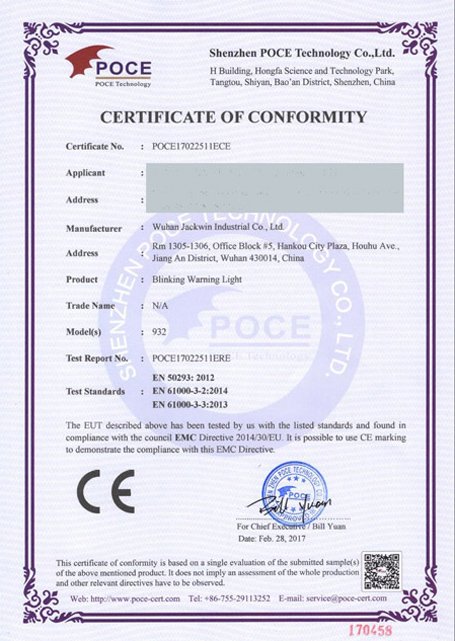

- Certificates
| Diameter | Internal Length | External Width | External Length | Internal Width | Weight/Meter |
| 2mm | 10mm | 7mm | 14mm | 3mm | 21g |
| 3mm | 13mm | 10mm | 19mm | 5mm | 21g |
| 4mm | 25mm | 7mm | 35mm | 8.5mm | 36g |
| 6mm | 27mm | 20mm | 35mm | 7mm | 59g |
| 6mm | 41mm | 21mm | 50mm | 8mm | 59g |
| 6mm | 25mm | 21mm | 37mm | 10.5mm | 68g |
| 8mm | 38mm | 26mm | 50mm | 10mm | 99g |
| 8mm | 54mm | 27mm | 67mm | 9.5mm | 99g |
| 8mm | 50mm | 26mm | 66mm | 10.5mm | 126g |
| 8mm | 34mm | 24.5mm | 50mm | 11.5mm | 134g |
| 8mm | 42mm | 28mm | 60mm | 12.5mm | 99g |
| 10mm | 54mm | 41mm | 73mm | 21mm | 206g |
| 10mm | 42mm | 34mm | 62mm | 16mm | 205g |
| 12mm | 65mm | 40mm | 90mm | 18mm | 300g |

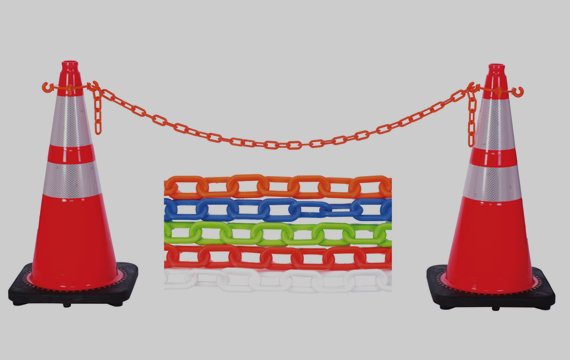

Traffic Cone Chains
JACKWIN offers various sizes and colors of plastic chains used for traffic cone connection and link, the distance of each cone is around 2 meters, and you can cut the chains according to your requirement to organize the linkage and length. You can manage the cones in line, round, or square areas.

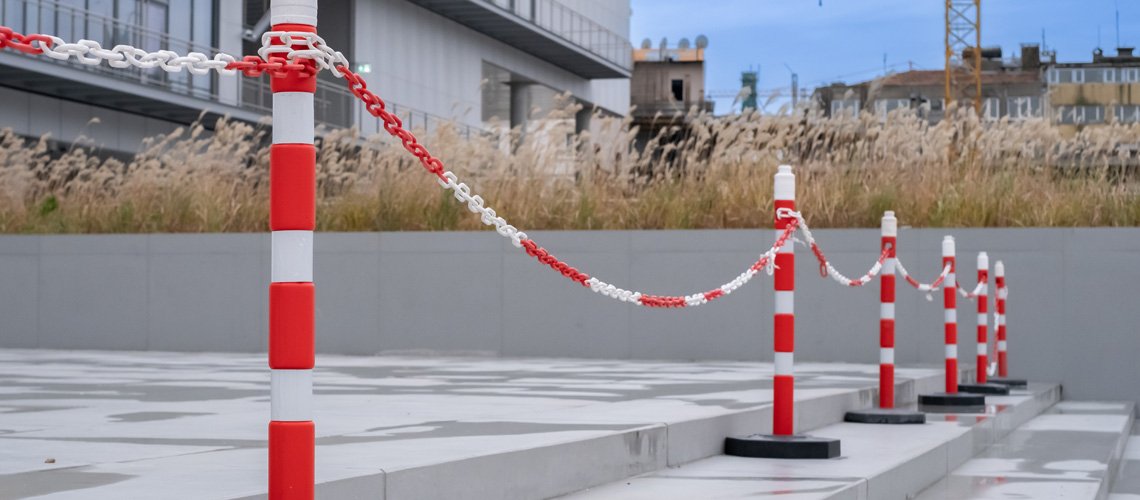

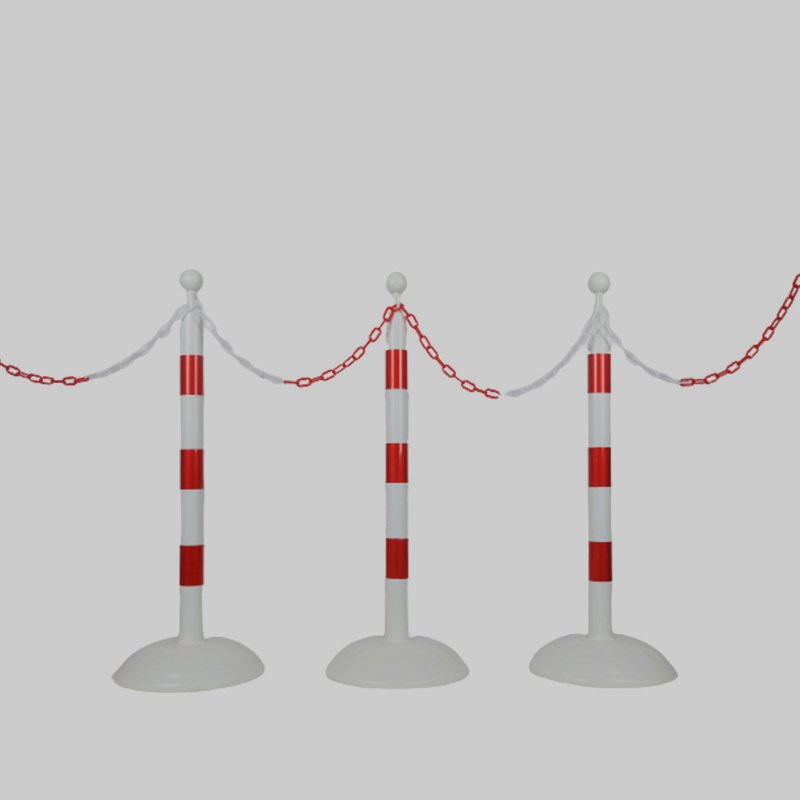

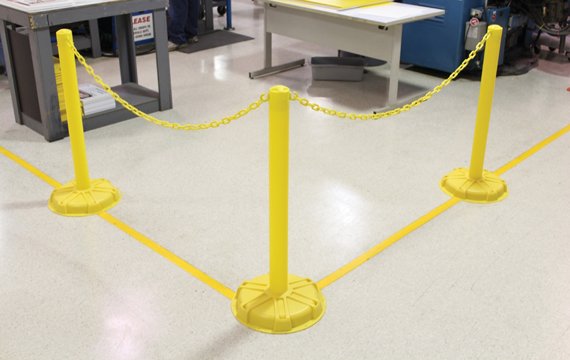

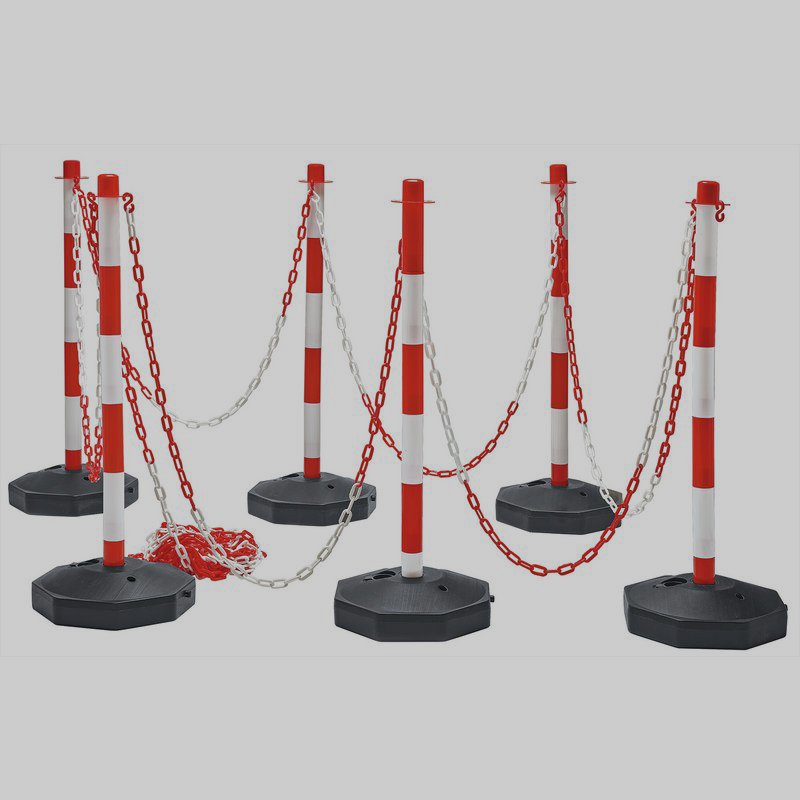

Safety Barrier Chains
Safety barrier chain is a plastic chain that functions as a safety barrier. It is generally used to connect stanchions, separate construction areas, create pathways and passages, or create a safe order for events. The plastic chains provided by JACKWIN are of good quality and can be customized in various colors to meet the needs of different customers and increase sales for your business.

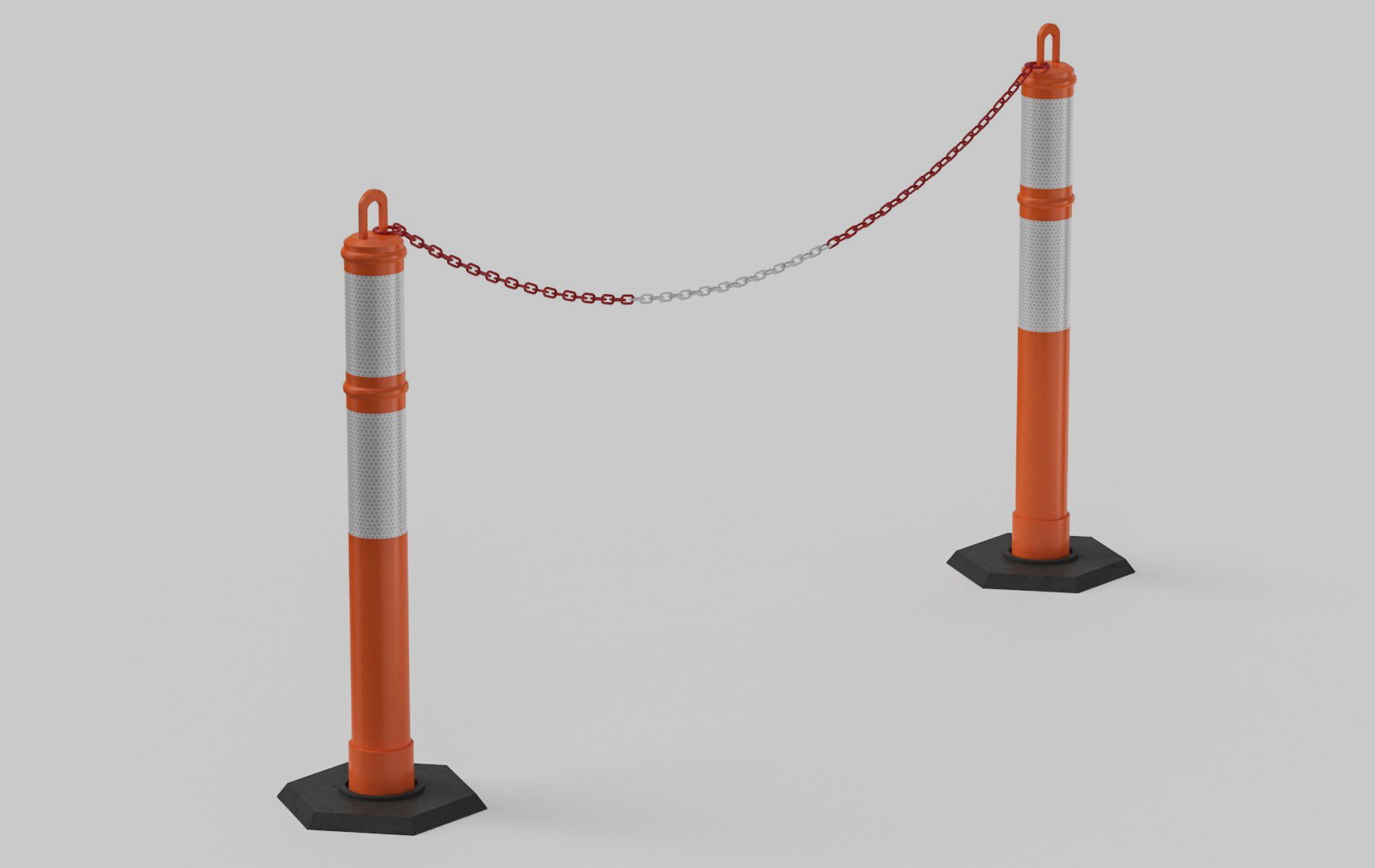

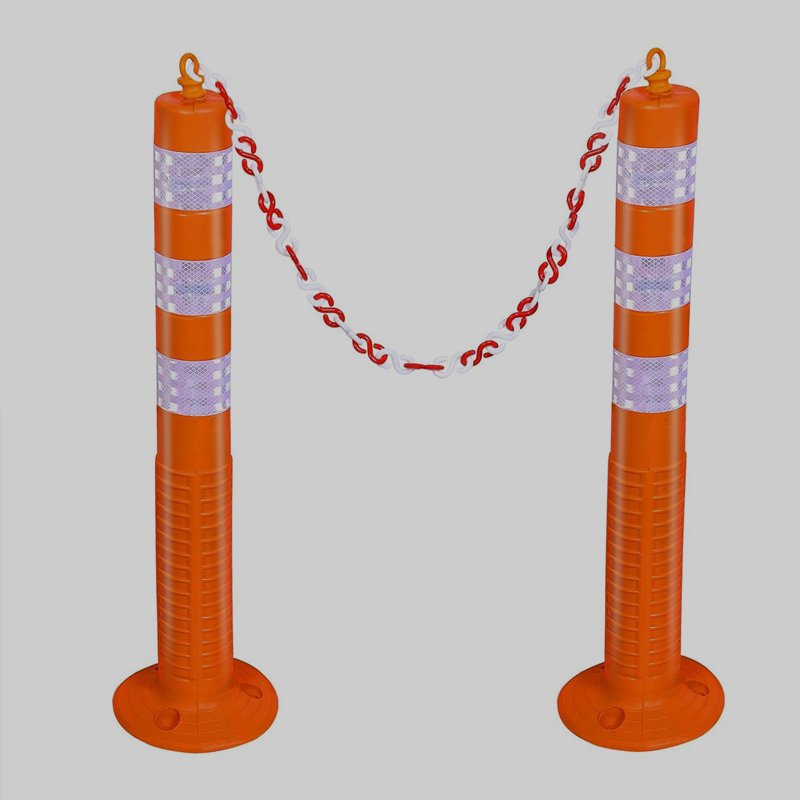

T-top Delineator Post Chains
There are ready-made holes on the T-top, and the chain with S hooks can be hung directly on the top hole to achieve the connection. Usually the length of the chain directly connected to each post is about 1.5 meters. The chain length is longer than the spacing, so it is necessary to keep the chain downward in an arc. Delineator posts connected with chains can act as a barrier to prevent cars and people from passing through the prohibited area.

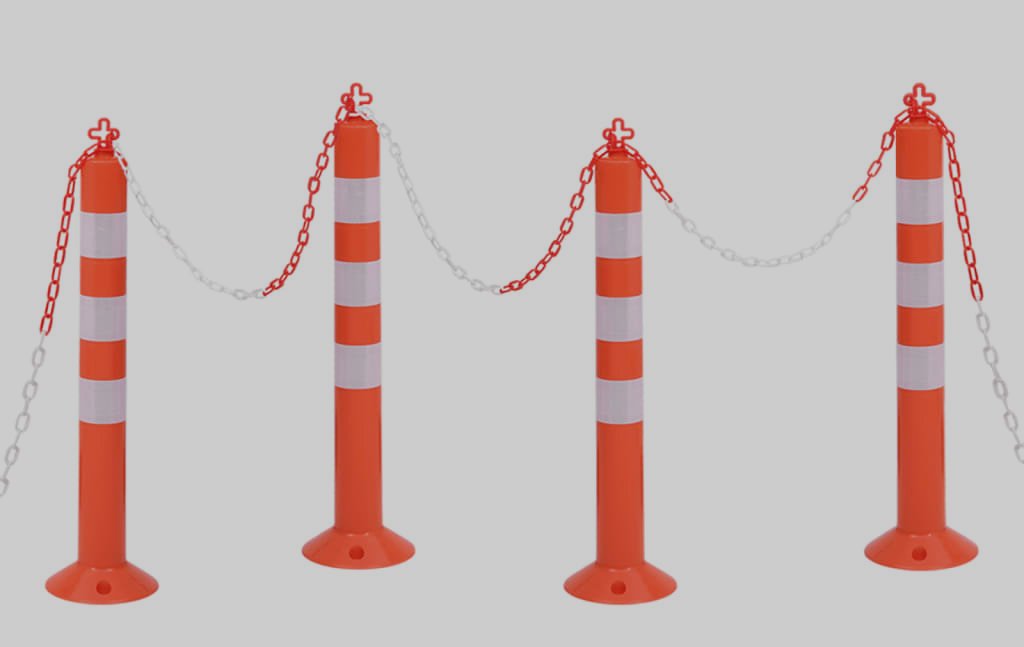

Traffic Control Bollard Chains
JACKWIN’s plastic chain is used to connect traffic control bollards. By using an S hook to hang on the small accessory on the top, the chain connection between each bollard is realized, thus realizing an overall linear system that can be used for traffic control, lane separation, isolation, roadblocks and other functions.
Your Site Related Products
Plastic Chains: Everything You Need to Know
Material & Production
JACKWIN’s plastic chain is made of HDPE material and is produced using injection molding technology. What’s different about our technology is that we can produce different colors for one chain. And the length can be customized to any length you want.
Applications
JACKWIN’s plastic chains are mainly used for safety fencing, private space construction, commercial area isolation and industrial scene applications (factory workshop area division and warehouse safety protection), etc. Our chains are very flexible and can be creatively transformed according to different usage occasions. No matter how demanding your requirements are, JACKWIN’s plastic chains will be your best choice.
Installation
The installation of JACKWIN’s plastic chain is very simple. It can be used with S hook and O rings connectors to perfectly meet your requirements. You can also DIY, shorten or lengthen to meet your installation requirements. Of course, if you encounter any problems during the installation process, please share your confusion with us in time, and we will be happy to work with you to find the best solution.
Custom Your Plastic Chains
We are a professional and leading manufacturer, wholesale and exporter in China for more than 18 years. We provide customization service for your plastic chains in sizes and colors. Due to the limitation of webpage content, many of our plastic chain drawings cannot be shown to you one by one. If you are a professional plastic chain purchaser and have more professional requirements for chain structure, you are welcome to move your precious fingers to click the CTA button to send your inquiry. We are very happy to give you a satisfactory reply in time.
How To Choose Suitable Plastic Chains?
We have a say in how to choose the plastic chains that suit you. First of all, we are a professional chain manufacturer and we are very familiar with the production process, various materials, functions and usage scenarios.
First of all, you have to know clearly whether the chain you want to purchase is used indoors or outdoors. If it is used outdoors, the anti-ultraviolet and anti-aging and fading problems of plastic chains are your first considerations.
Secondly, the size of the plastic chain diameter. Generally speaking, you can choose 6mm or 8mm to meet your requirements. These two sizes are the most frequently used sizes on the market.

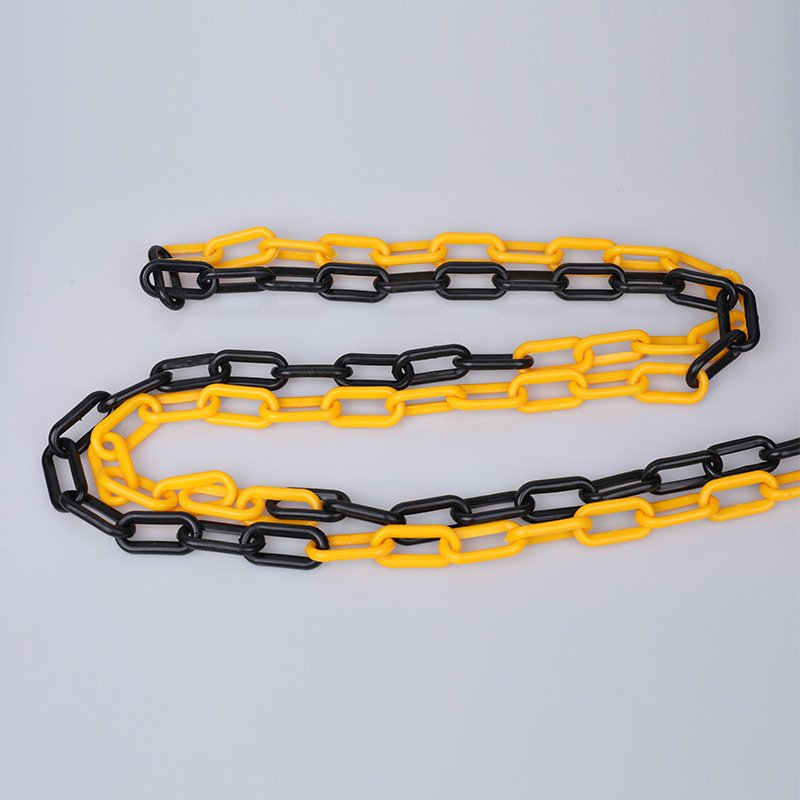

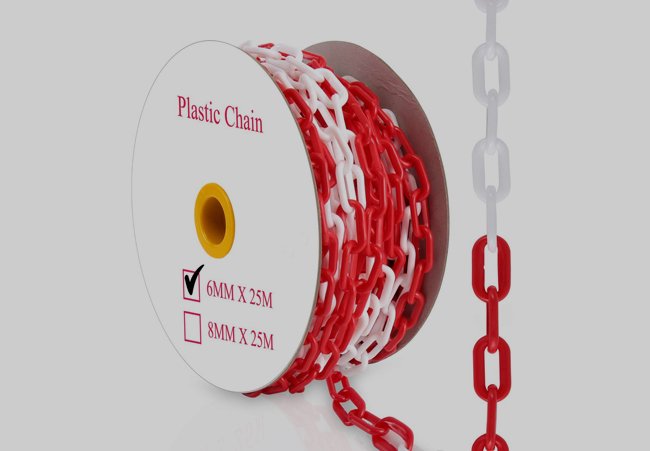

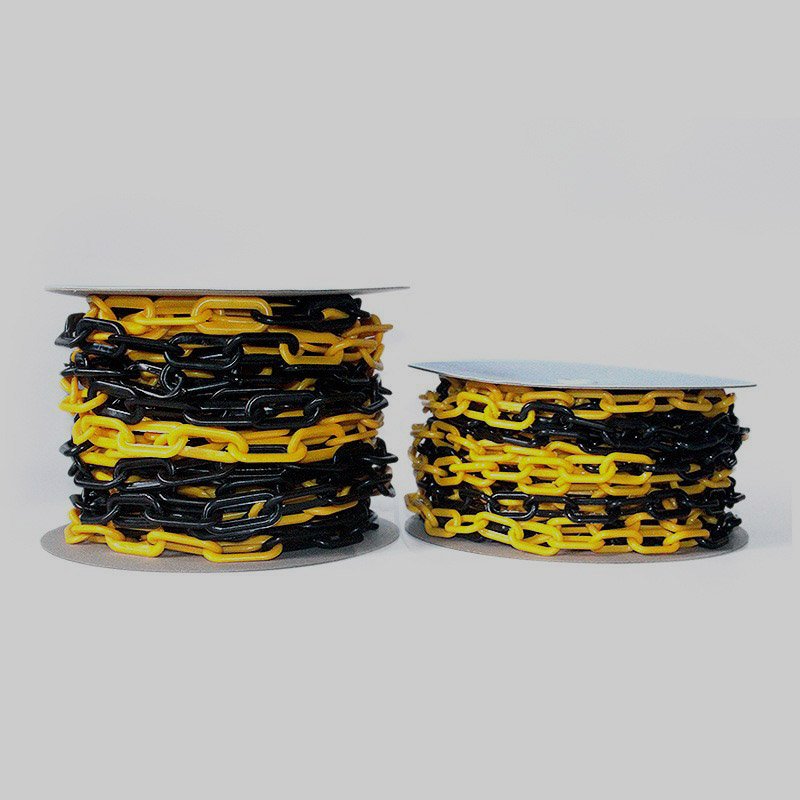

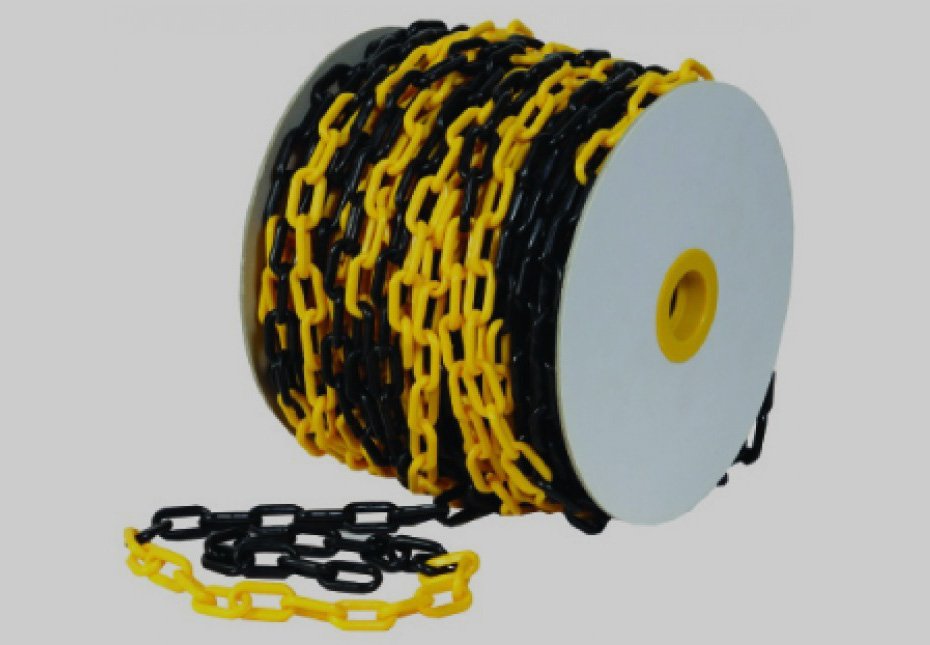

Finally, the color selection of the plastic chain requires you to decide according to your own usage scenarios. Generally speaking, the following color combinations are also the most used. Either choose pure yellow, red, or choose mixed colors (a chain has two colors) red and white, black and yellow, which is a good match.
Yes, we can custom plastic chain length based on your requirements and you can DIY by cutting the length as you will.
Normal production time is 15-20 days, sea shipping will take around 30 days, and air shipping will take around 10 days.
We have smart and various payment methods like T/T wire transfer, PingPong, Paypal, Alipay, etc.
JACKWIN’s plastic chain link is a lightweight, smooth link with multiple functions and uses. It is used to create secure barriers, private and public spaces, such as traffic control, crowd control for pedestrians, security areas, warning posts, delineator posts & bollards, home, office and warehouse. Moreover, the yellow plastic chain link and red and white plastic chains are more widely used in safety.
Yes, our plastic chains are made of high impact and durable HDPE material and can withstand low and high temperatures for more than 8 years.
