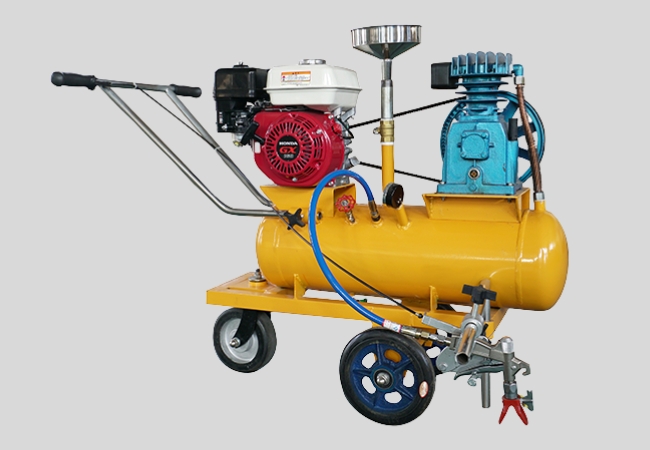

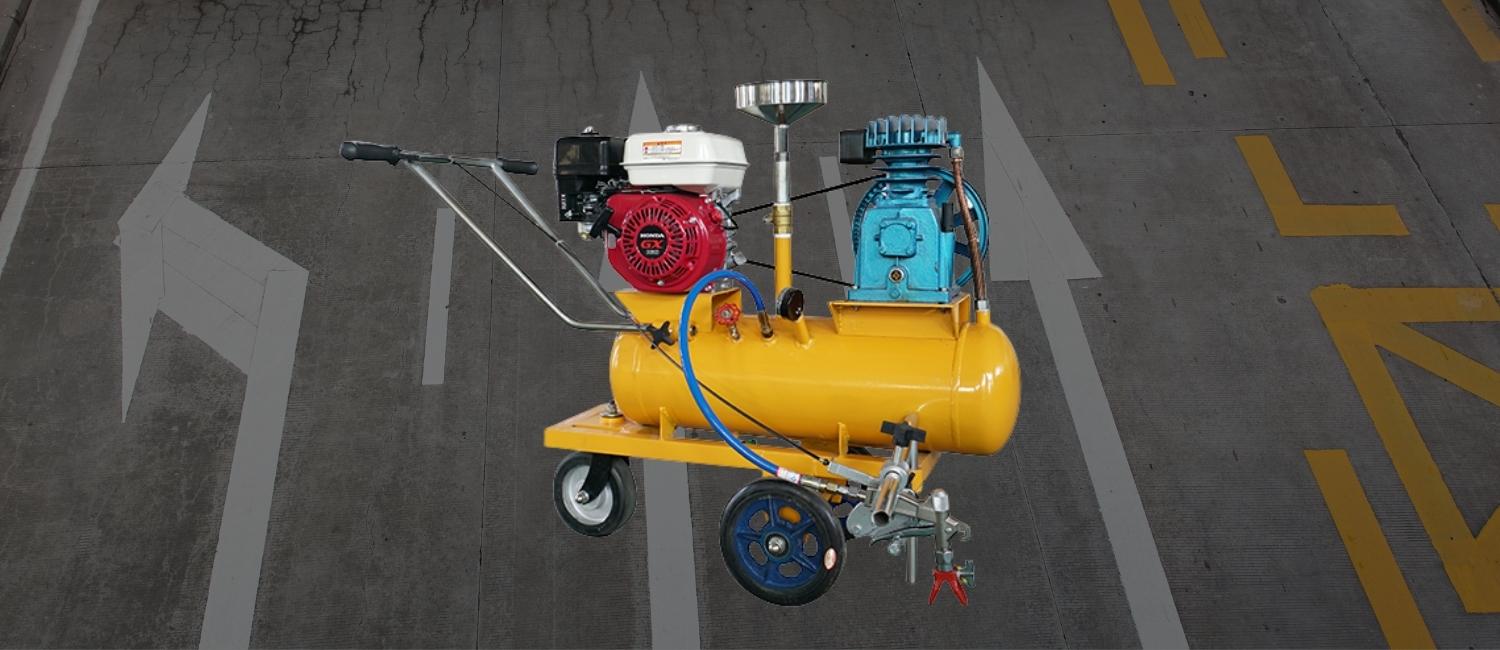

High-Pressure Primer Sprayer
JACKWIN primer sprayer machines are designed to enhance the adhesion of thermoplastic road marking paint and pavements(asphalt and concrete) by spraying an adhesive coating. Our primer sprayers are widely used for large project jobs to improve work efficiency compared to traditional primer roller methods.
Browse the outstanding features as follows:
Features:
- High-performance air compressor support high flow and pressure.
- Primer storage can with pressure safety valves and a sieve on feeding port.
- Brake handle controls the flow of spray gun.
- Adjustable guide rod for all directions.
- Equipped with rear wheel directional device.
- Specification
- Types of Road Marking Primer
| Maximum Pressure | 0.5mpa |
| Paint width | 100 to 450mm |
| Safety Pressure Control System | one-way ball valve enable pressure stable |
| Walk Speed | 65-70meters per minute |
| Power Supply | Powered by 5.5HP imported Honda gasoline engine or 6.5HP imported Peliton gasoline engine |
| Size | 1230x800x920 mm |
| Weight | 90 kgs |
JACKWIN primer machines support multiple road marking primers, available in various types. Below are their features and performance characteristics.
Acrylic Primers: Primarily designed for asphalt surfaces, acrylic primers offer superior adhesion and bonding strength. They withstand extreme temperatures, acid rain, and other harsh weather conditions, ensuring long-lasting durability.
Epoxy Primers: Ideal for concrete surfaces, offering strong adhesion and resistance to various chemicals.
Water-Based Primers: Suitable for environmentally sensitive applications, emitting no toxic substances, and are also effective on dry road surfaces.
Solvent-Based Primers: Designed for specialized road conditions, featuring strong adhesion, excellent bonding strength, and high durability.

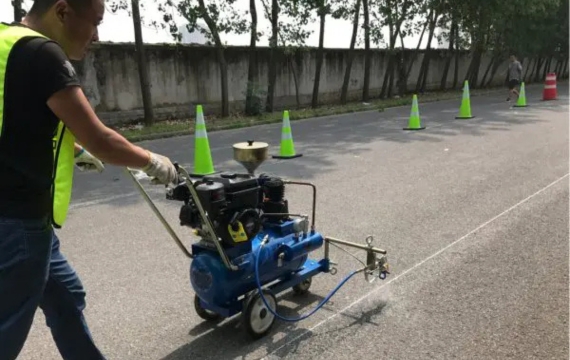

How to Use Primer Spraying Machine for Road Marking?
Step 1: Wearing PPE and Preparation
You need to wear safety glasses, goggles, gloves and safety vest before you start the engine, then inspecting sprayer machine and filling the primer.
Step 2: Road Surface Cleaning
Before starting to paint the primer, you need to use JACKWIN road marking removal machine, road blower and road cleaning machine to remove old markings and clean the surface dust and debris.
Step 3: Start Engine and Fill Petrol, Primer
Fill fully primer into tank and petrol keep the petrol fully in oil tank. Start engine and adjust pressure and flow.
Step 4: Application Process
Adjust the spray width 30 to 45cm(wider than painting width), then start to move and spray the surface of road.
Step 5: Dry
Use JACKWIN road dryer machine to speed primer dry.
