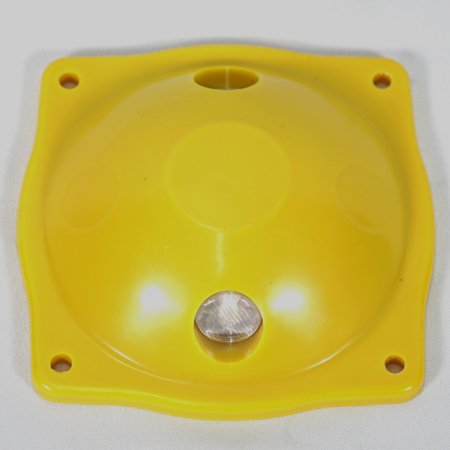

JACKWIN is a professional manufacturer and supplier with over 15 years of experience in manufacturing and exporting all types of road studs. We offer solar road studs, reflective road studs, temporary road studs, and intelligent road studs for your options. We also can supply customization for your design and label according to your requirements.
If you are a road stud trader, wholesaler, bidder, highway engineering contractor, or transportation and road administration department, and if the road studs you purchased before were of poor quality and the seller did not have any product quality assurance and warranty, or now you are worried about not being able to find a very professional and good road stud supplier, congratulations, we are your best choice and the right choice.
What are Road Studs
Road stud(also called cat’s eyes in the UK) is a reflective or luminous warning safety device that is used to mark roads, bridges, and tunnels, providing guidance or warning to drivers in low-light conditions. It’s made of plastic(PC, ABS, composite plastic) glass, and cast aluminum.
Road studs are widely used on motorways, roadsides, lanes, car park areas, or loading areas to play a crucial role in guiding drivers and pedestrians to identify the road in dark nights, bad weather conditions, fog, or rain to avoid danger and keep them alert for safety.
Road Studs By Features

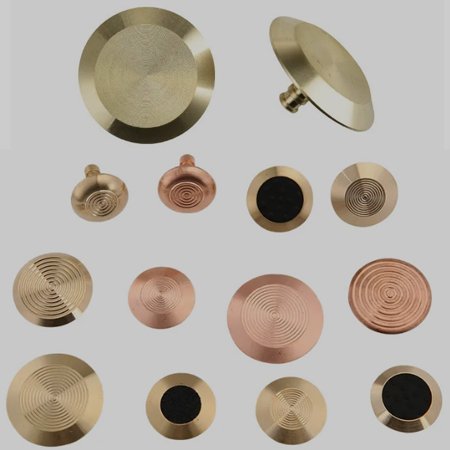

JACKWIN offers all types of road studs including plastic, aluminum, solar, glass, ceramic, stainless steel, and copper road studs. We just show you small part of road studs in the following due to the limited column of web page. If you can not find road studs you want, just contact us.
Embeded, Solar Powered, GPS Synchronous Flash/Flow, Military Plastic 40T Impact
Solar powered, Human Infrared Sensor, Synchronous Flash/Flow
PMMA and Glass Beads Reflectors for Road Studs and Delineators

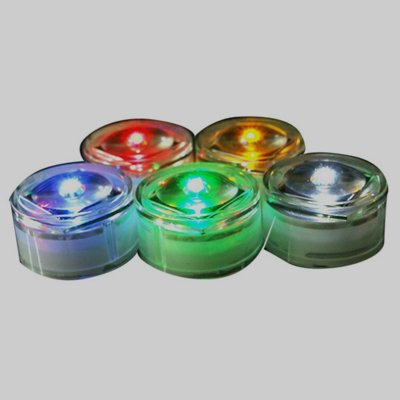

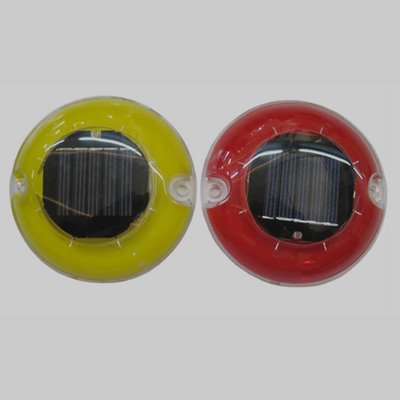

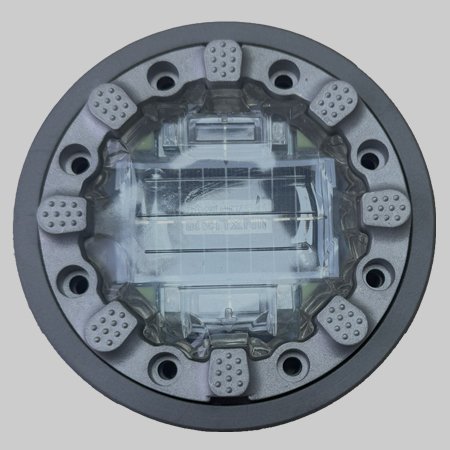

Round solar panel, transparent PC shell, 360 degree flashing and steady light
Solar lighting for dock, yards, parks, and also for pavement marking

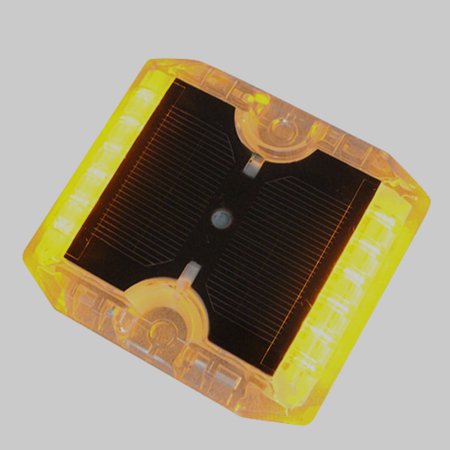

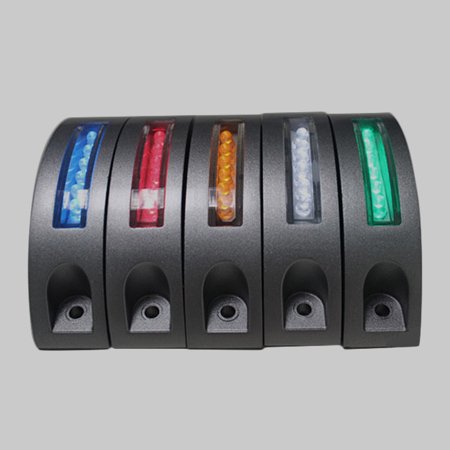

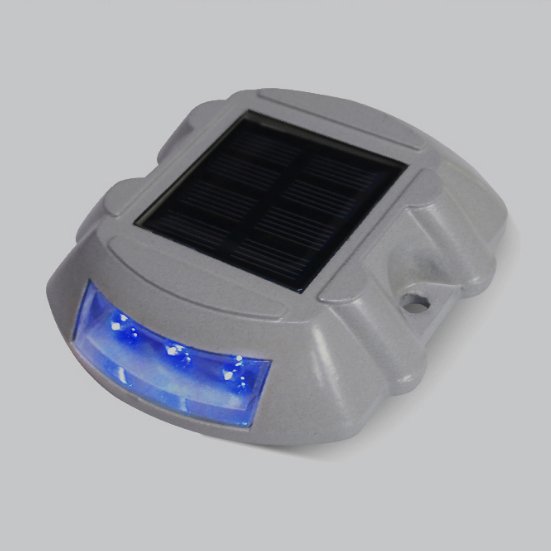

8 LED flash or steady, solar powered, high brightness
Double sides lens, solar powered, LED blinking and steady
For Demarcating Pedestrian Crossing Points, Parking Bays, and Boundaries
Popular and Hot Products
In the following column, we will show you some popular and hot-selling road studs that are widely purchased in the market for your reference. Hope it can help you to select.
-

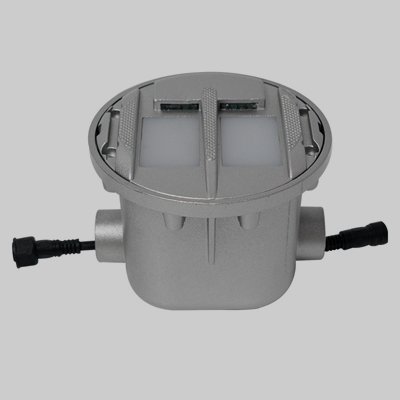

Wired Embedded Intelligent Road StudsDesigned for Zebra Crossing, Human Infrared Sensor, Synchronous Flash/Flow
-
-

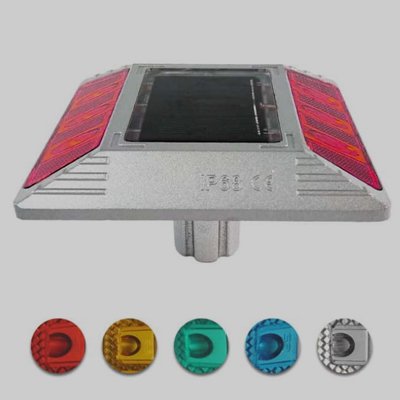

Heavy Duty Solar Road StudHigh quality heavy duty solar road stud, optional red, yellow, green, blue and white
-
-
-
Feature Box
JACKWIN road studs are mainly divided to solar powered road studs and reflective road studs, their features are in great difference. We list all features in following box.
solar power supply, large rechargeable battery
recycled rechargeable battery
PMMA reflective for long distance
LED luminosity or photoluminescent in high brightness
plastic or aluminum alloy no rust
over 5 years no aging
IP65 to IP68 ratings
Aluminum, composition plastic, ABS, PC for max 40T

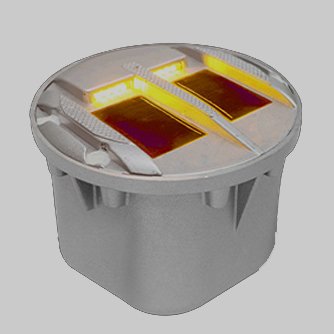

Embedded Solar Road Studs-Military Grade
Our new solar road stud has been developed for 3 years and finally launched. We use military-grade plastic shell, saying goodbye to the disadvantage of traditional aluminum alloy shell shielding signal, so the transmitter constantly tries to transmit new signals, which causes it to be in working state all the time and consumes a lot of power, so the battery life is short. At the same time, the compression resistance and hardness of our plastic shell are far superior to aluminum alloy. It can withstand more than 295 kN (over 30T).
We also provide customization for your request based on below features:
- Optional for solar powered, wired A/C or D/C supply
- Ultra bright LED
- Photocell switch
- Large capacity rechargeable lithium battery
- 2.4 GHz wireless synchronization
- GPS positioning synchronizes flash and flow
- Visual distance over 500 meters
- No wired, easy to install

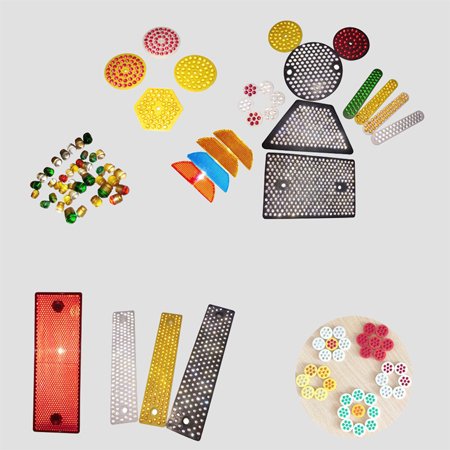

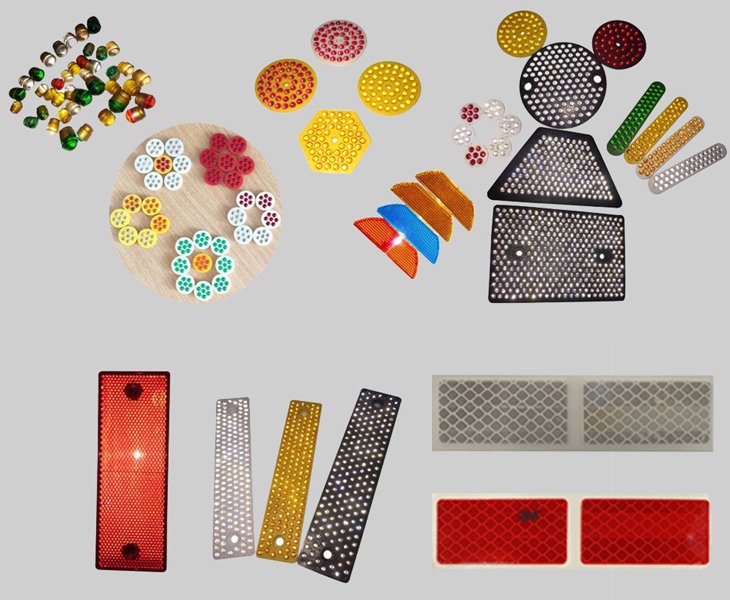

Road Stud Reflectors

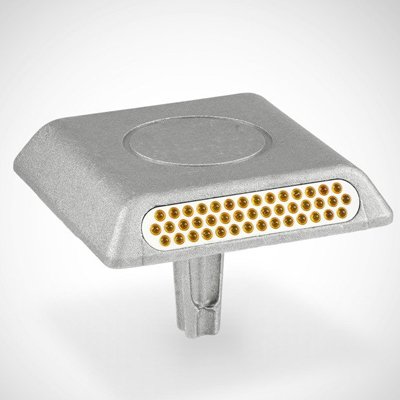

JACKWIN offers various road stud reflectors including PMMA/PC LENS reflectors and glass/plastic bead reflectors.
PMMA LENS is produced by injection molded process, and glass bead reflectors are produced with glass beads with plastic panels.

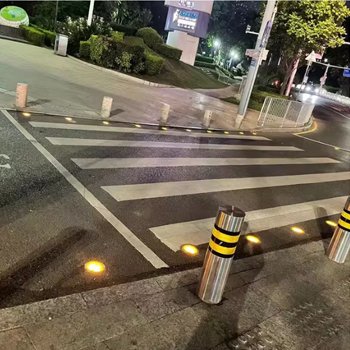

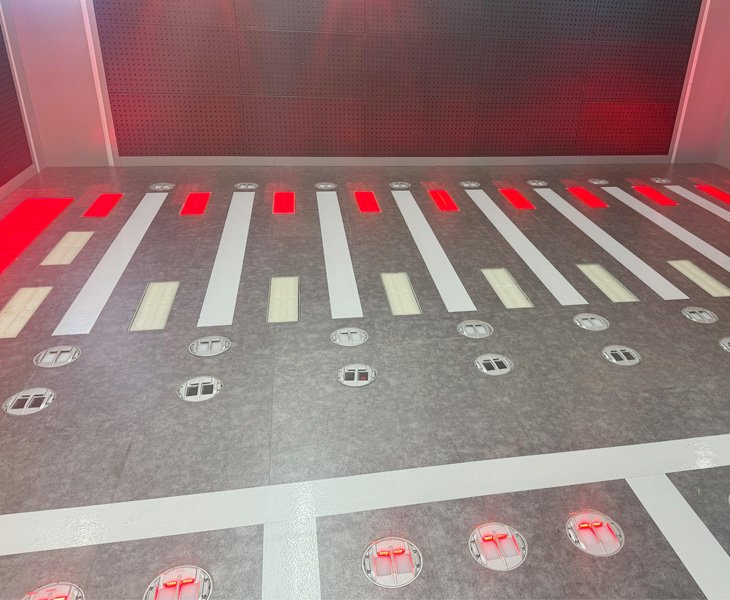

Smart Pedestrian Crossings-Intelligent Road Studs
Intelligent road studs are composed of solar or wired road studs with GPS synchronized flashing or flow functions and controller systems. Zebra crossings in non-light-controlled areas lack red and green signal lights to control traffic, and there is a large flow of pedestrians and vehicles. Traditional traffic lights lacks advanced warning functions and the warning effect is very poor. Many drivers cannot predict that pedestrians will cross the zebra crossing ahead, so it is easy to cause traffic accidents on zebra crossings.

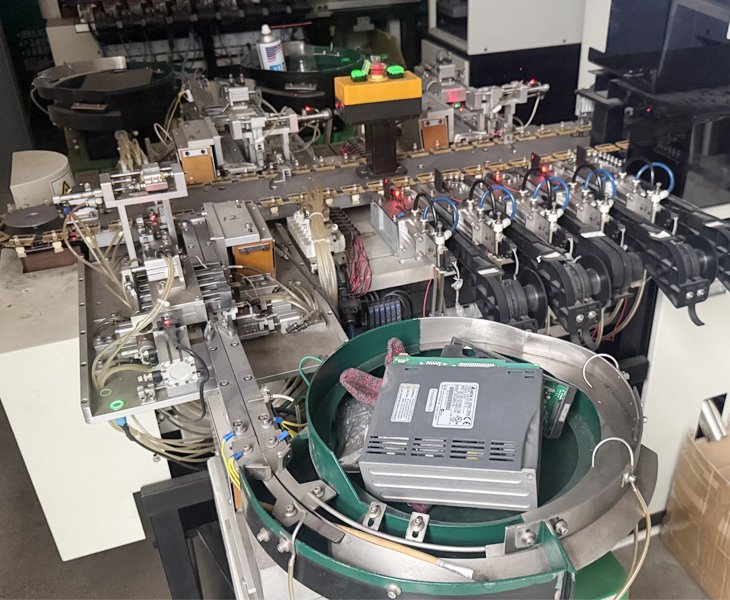

Solar Road Stud Electronic Board
Solar road studs consist of two parts, a cast aluminum shell and a built-in circuit board. The production of the circuit board is to engrave the originally designed circuit on the PCB to form a circuit, and then assemble various components, LEDs, and rechargeable batteries.
Resource
To learn more about JACKWIN products, please follow our knowledge center.

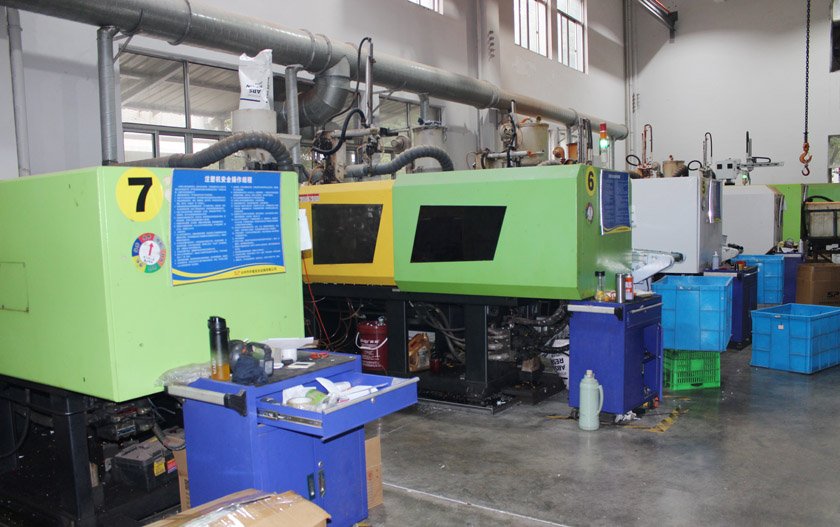

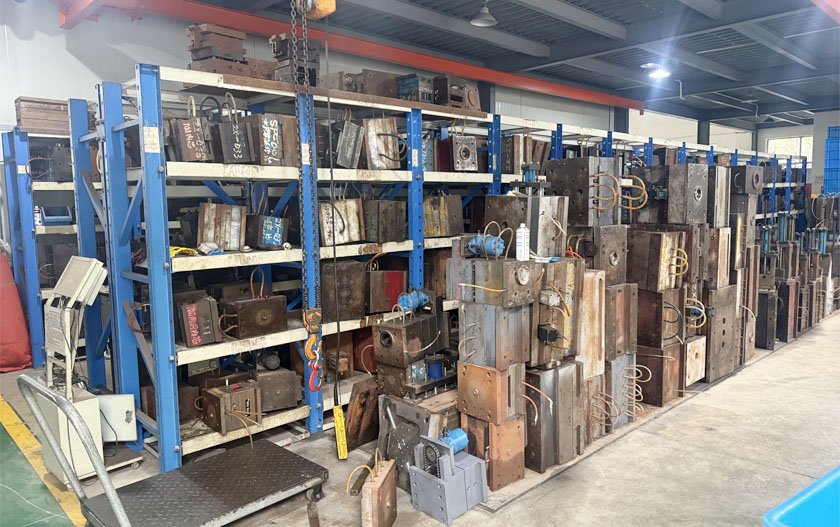

Road Stud Production Machine and Mould
We have 5 injection molding machines and more than 100 molds for the production of plastic shells and PMMA reflectors for road studs, as well as circuit board assembly lines. We can independently manage the entire production process from design, production to assembly.
Applications
Road stud is widely used in the road traffic industry. It provides safety protection for drivers and pedestrians of moving vehicles and plays a very important role in road safety. Therefore, it is recognized and widely used in many countries around the world.
Smart road studs for safe isolation zone, drivers predict pedestrians ahead.

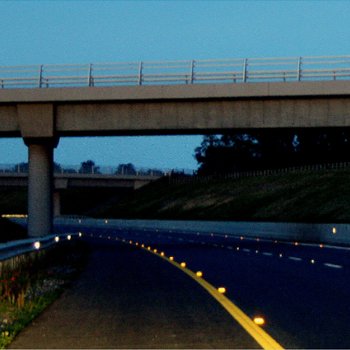

Installed on bridge piers or wall barriers, it can serve as an early warning.

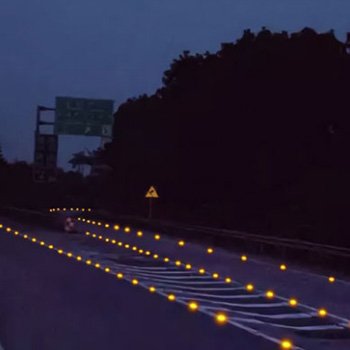

Mark the ramp outline to warn drivers of safe areas, which has the same function as a delineator.

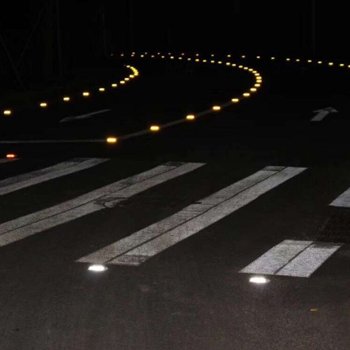

Road studs embedded on the lanes make lane lines clearer at night, especially on roads with multiple lanes.
Road studs on motorways are mainly installed on both sides of the road, mostly in yellow color, to mark the edge of a motorway lane.

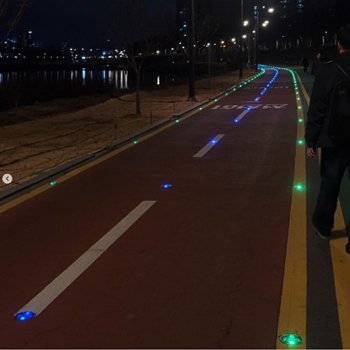

Red or yellow road studs are used on sidewalks to demarcate safe areas and provide safety reminders for pedestrians. And blue and green color for decoration.

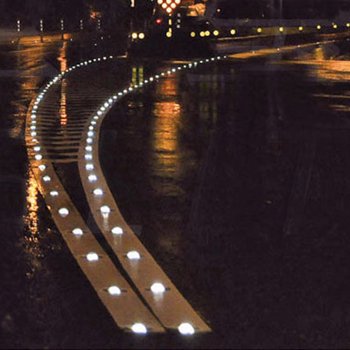

Drivers tend to be indecisive when splitting lanes on slip roads, and studs are installed continuously to mark the road contours.

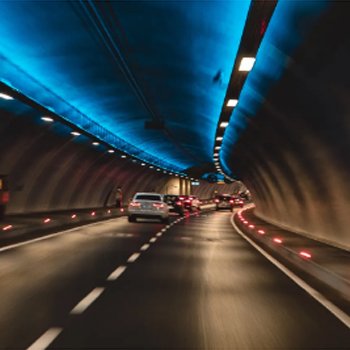

Wired tunnel road studs use DC 24V power supply and ultra-high brightness LED to signal the layout in tunnels.

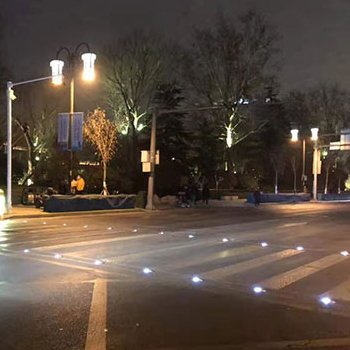

Raised road markers are installed at the entrances of schools and hospitals with large pedestrian flow to reduce speed and provide safety warnings.
Plastic Road Stud VS Aluminum Road Stud

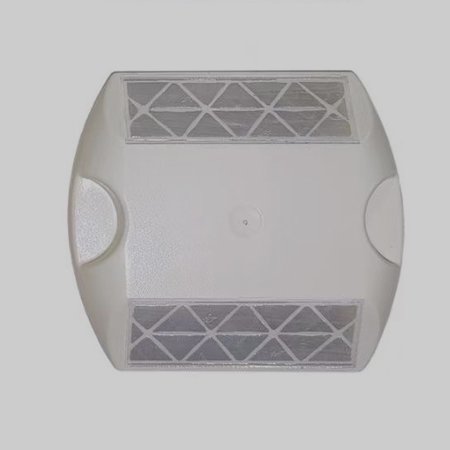

JACKWIN plastic road studs are made of ABS or composition plastic, it’s lightweight and economical and cost-effective, and it’s easy to install and low maintence cost. But it is also high impact and can resist heavy weight truck.

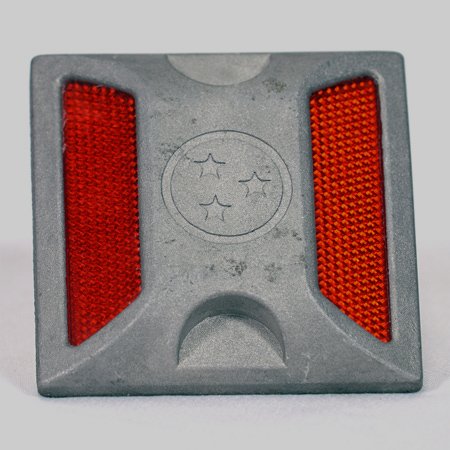

Aluminum road studs are made of cast aluminum, it’s heavy weight comparing to plastic road stud. It can resist heavy duty, no rust and UV-resistance. It’s normally embeded into ground, so the maintence cost is a little higher than plastic road stud.

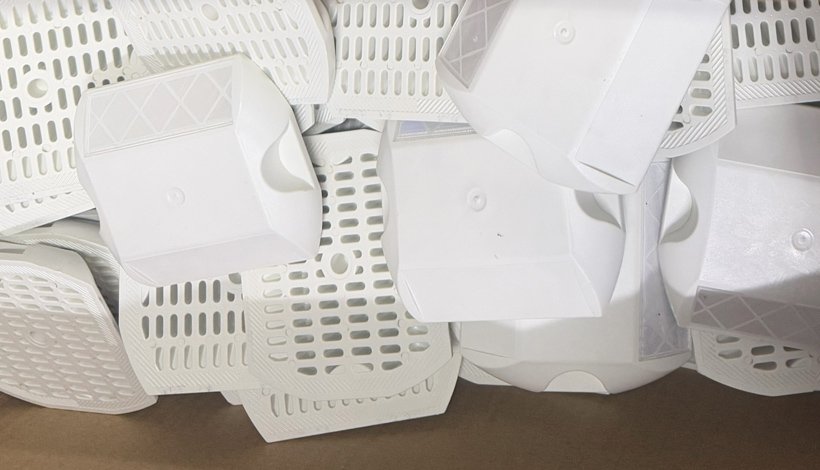

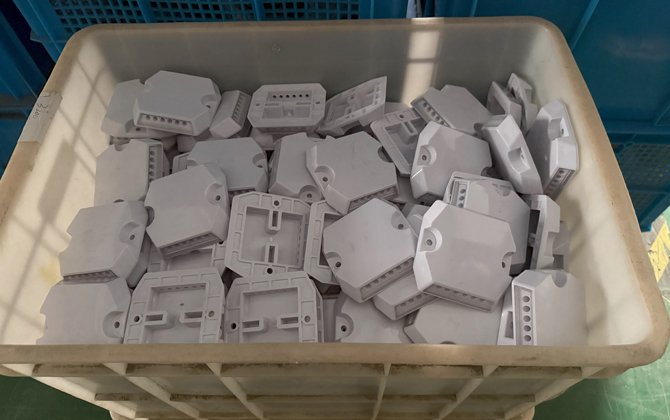

Plastic road stud housing is produced by injection process and made of ABS material.

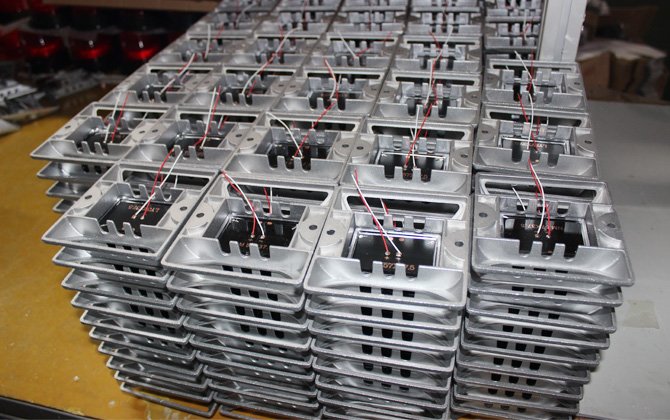

Aluminum road stud housing is produced by casting process and made of aluminum material.
Learn More About JACKWIN Road Stud
Solar road studs are mainly intelligence, smart and active road studs, and their installation is a little more complicated than ordinary road studs, and they need to be embedded below the ground. We will make some in-depth descriptions of this type of road studs, such as installation tools, installation steps, instructions for use, warranty period, etc.
- Specifications
- Install Equipment
- Installation Method
- Quality Guarantee
| Item | Size (mm) | Material | Weight Capacity |
| Plastic Road Stud | 100x100x20 | ABS/PMMA | 20T |
| Aluminum Road Stud | 102x110x25 | Aluminum/PMMA | 30T |
| Embedded Road Stud | 100x100x35 | Military Plastic | 40T |
| Solar Road Stud | 102x125x35 | Aluminum/PMMA | 30T |

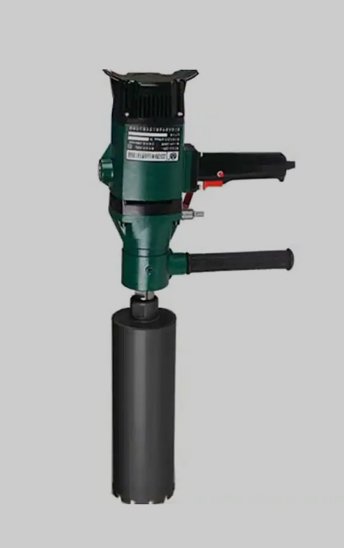

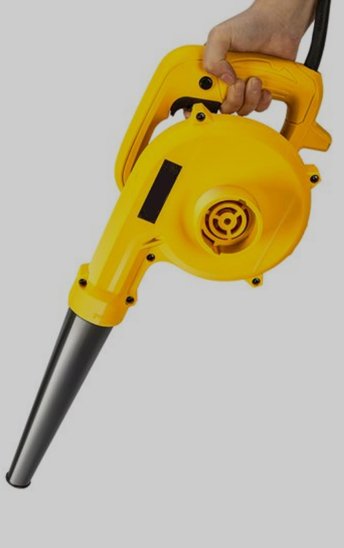

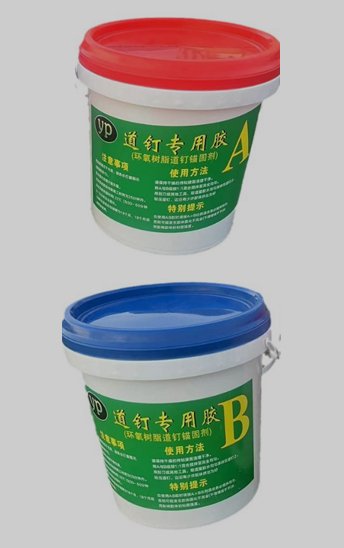

The installation of embedded road studs only requires the following simple construction tools and supplementary materials.

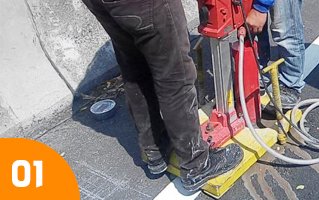

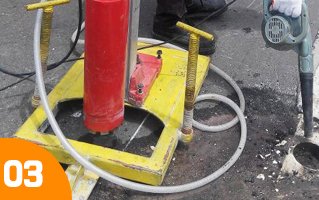

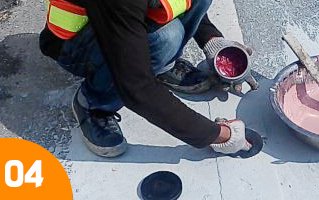

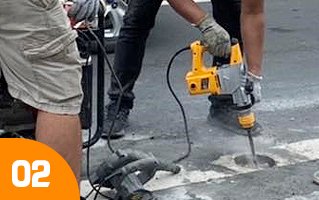

The installation of embedded road studs is very simple, only a few simple tools are needed, follow the steps below to complete your installation.
All JACKWIN road studs are guaranteed for ONE year from the date of purchase, and the embedded military-grade solar synchronous road studs are guaranteed for TWO years. If you encounter any problems with your product quality, product upgrades, technical support, etc. after purchasing our road studs, please feel free to contact our customer service team.
Our Customer Feedback
-
Very satisfied with 1000 ea solar road studs, tough quality together with super bright LEDs.
BenjaminSupply Chain Manager -
Shipment was done on time, i appreciated the efficient communication and service, expect work together next time.
EricBusiness Developer -
2 pallets of road studs received, impressive quality, fast shipping and safety packed. Nice product! I like it and super recommend!
Ron HicksPurchasing Manager -
The level of craftsmanship in your product is quitely excellent. From the weight to the feel, it’s apparent that they are made with precision and a keen eye for detail.
Mark ThomasSourcing Manager
A: The price of road stud is up on the material type and cost, our wholesale price ranges from USD0.8 to USD20.
JACKWIN road studs are packed into inner boxes and massed into export cartons. Finally, we use standardized pallet packaging to adapt to standardized forklift operations
We have lots in stock of regular road studs, and we are ready to ship. But for most of the road studs, we need to specially manufacture, estimated lead time is 15 to 20 days after receiving your deposit.
Related Product

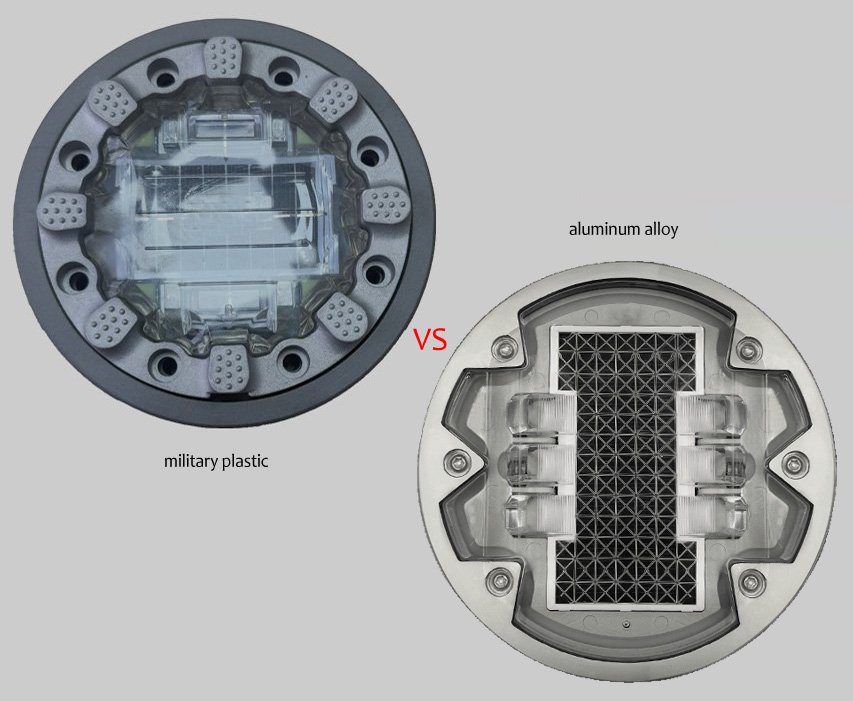

The Influence of the Aluminum Shell of Embedded Solar Aluminum Road Stud on the Signal
It is well known that metal will shield electromagnetic signals.
The electromagnetic waves emitted by the transmitter module with built-in GPS positioning and synchronous flashing and water flow functions are reflected, absorbed or dispersed by the aluminum shell of the road stud, resulting in the road studs next to it being unable to receive or receiving very weak signals, and the synchronous signal being interrupted. In this way, the transmitter device continuously sends new signals, thereby increasing the consumption of battery energy. In addition, the surrounding environment of the road stud will also affect the reception of electromagnetic waves, such as passing vehicles, people on the vehicle making phone calls and other electronic devices will interfere with the efficiency of electromagnetic wave reception.
So, we use military grade plastic shell for embedded road stud to solve this problem and also our military grade plastic impact capacity is much higher than aluminum alloy shell.
Road Studs Spacing
During the construction of the road stud,You should follow the rules to meet particular and special needs at your local road administration, the spacing should be enough but not too much to keep safety indicated. Below is the standard width or distance between road studs for most roads.
- Motorway: 15-18 meters
- Urban roads: 10-15 meters
- Rural roads: 8-10 meters
- Curve or ramp: 5-8 meters
- Intersections, turns: 5-10 meters
Where are Studs Located and Meanings of Road Stud Colors
- Yellow, placed in the middle of a dual carriageway.
- Red, placed at the left of the edge line.
- Green, placed at intersections, high-speed entrances or exits.
- Blue, marking the location of the fire hydrant.
- White, placed in the middle of the road.

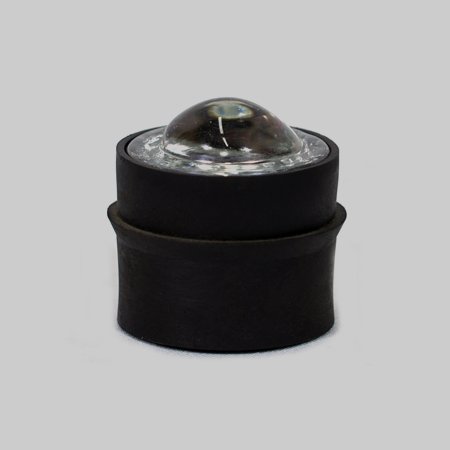

Difference between Road Studs and Cat’s Eyes
Cat eyes and road studs are the same thing, there is no difference, just in different calling. Why are they called cat eyes? Because they are raised, reflective or glow at night, so they are very similar to cat’s eyes, so they are called cats eyes. In addition, the British commonly call it cat eyes.
Road Stud Light Working Principle
The work of road studs originally mainly involved solar road studs, which use solar panels to absorb sunlight during the day, convert light energy into electrical energy, and store it in rechargeable batteries or capacitors for use at night. At the same time, light sensor(photocell)-controlled switches are used to control the working hours of the lights.
